Front Side Door Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

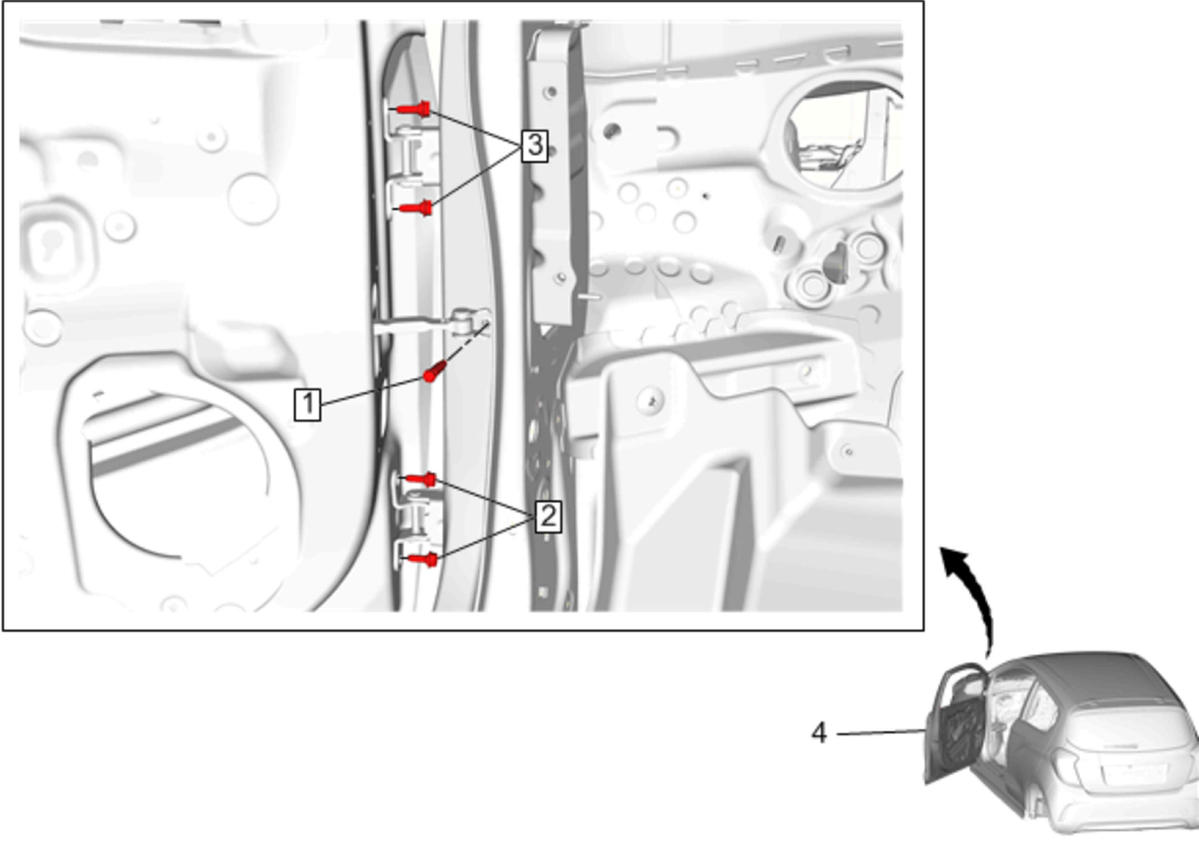

Fig 1: Front Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front Side Door Lower Hinge Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
3	Front Side Door Upper Hinge Bolt (Qty: 2) Tighten 28 N.m (21 lb ft)
4	Front Side Door Procedure Transfer all of the internal components. Remove the front side door electric connector. Adjust the front side door as needed. Refer to Front Side Door Adjustment .
