Front Side Door Adjustment
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement
. |
| 1 |
Front Side Door
Procedure
- Loosen the 4 front side door hinge bolts to adjust the front side door.
- Adjust the front side door in order to obtain an even gap between the front side door and the body side outer, the rear door, the rocker panel and the front fender and so that the front side door is flush with the body side outer, the rear door, the rocker panel and the front fender.

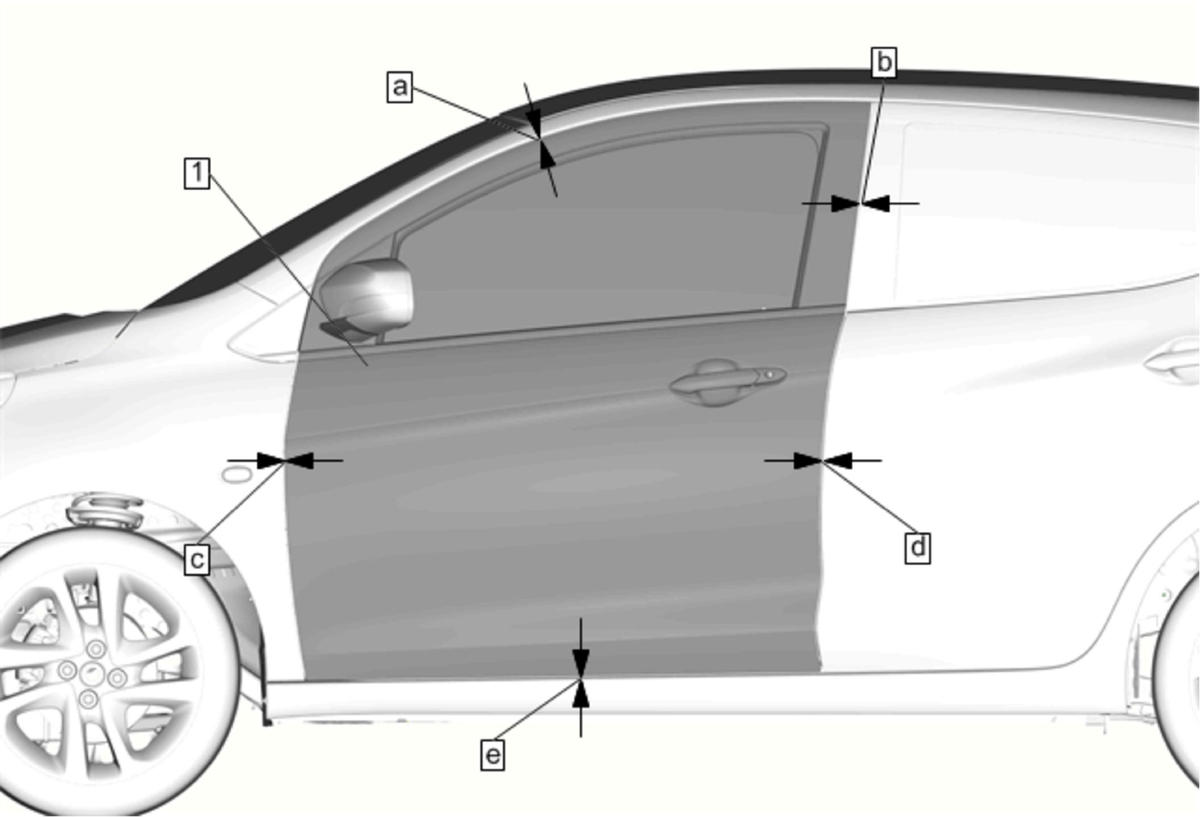

Adjustment:
- Front side door to body side outer (a) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
- Front side door to rear door (b) 3.5 mm ± 1.0 mm (0.14 in ± 0.04 in)
- Front side door to front fender (c) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Front side door to rear door (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in)
- Front side door to rocker panel (e) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in)
Tighten
28 N.m (21 lb ft) |
