Airbag Sensing and Diagnostic Module Replacement

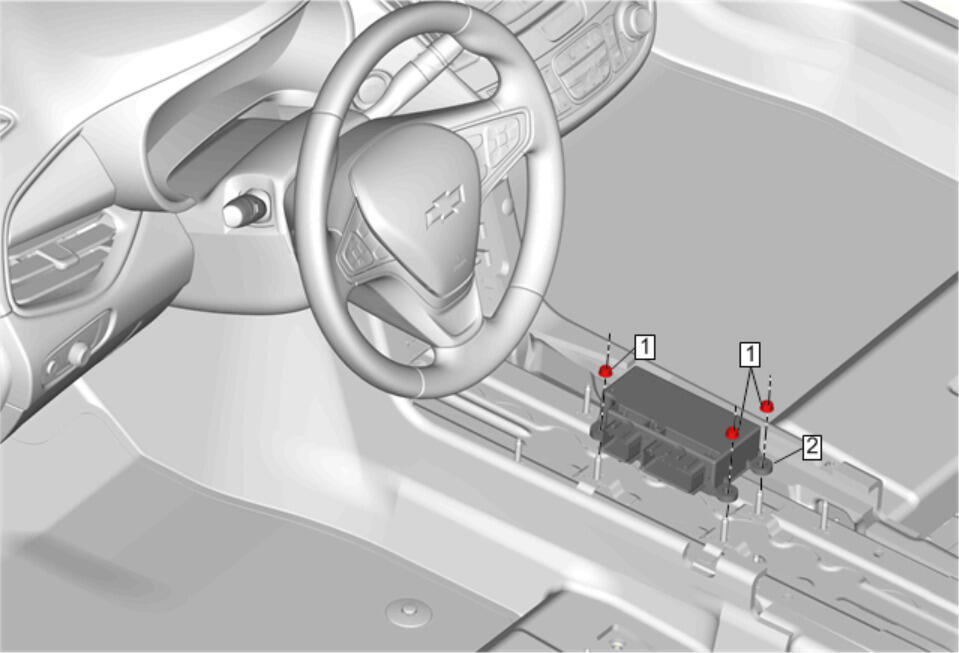

Callout	Component Name
WARNING: Do not strike or jolt the inflatable restraint Sensing and Diagnostic Module (SDM). Before applying power to the SDM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs. WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Remove appropriate transmission control: For MKE transmission, refer to Transmission Control Replacement . For MNH transmission, refer to Transmission Control Replacement (With Base)Transmission Control Replacement (Without Base) . For M3E transmission, refer to Transmission Control Replacement (With Base)Transmission Control Replacement (Without Base) .
1	Airbag Sensing and Diagnostic Module Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Airbag Sensing and Diagnostic Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Do not strike or jolt the inflatable restraint Sensing and Diagnostic Module (SDM). Before applying power to the SDM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Remove appropriate transmission control:
- For MKE transmission, refer to Transmission Control Replacement .
- For MNH transmission, refer to Transmission Control Replacement (With Base)Transmission Control Replacement (Without Base) .
- For M3E transmission, refer to Transmission Control Replacement (With Base)Transmission Control Replacement (Without Base) .

Airbag Sensing and Diagnostic Module Nut [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Airbag Sensing and Diagnostic Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
Enable the SIR System. SIR Disabling and Enabling
