Transmission Control Replacement (With Base)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

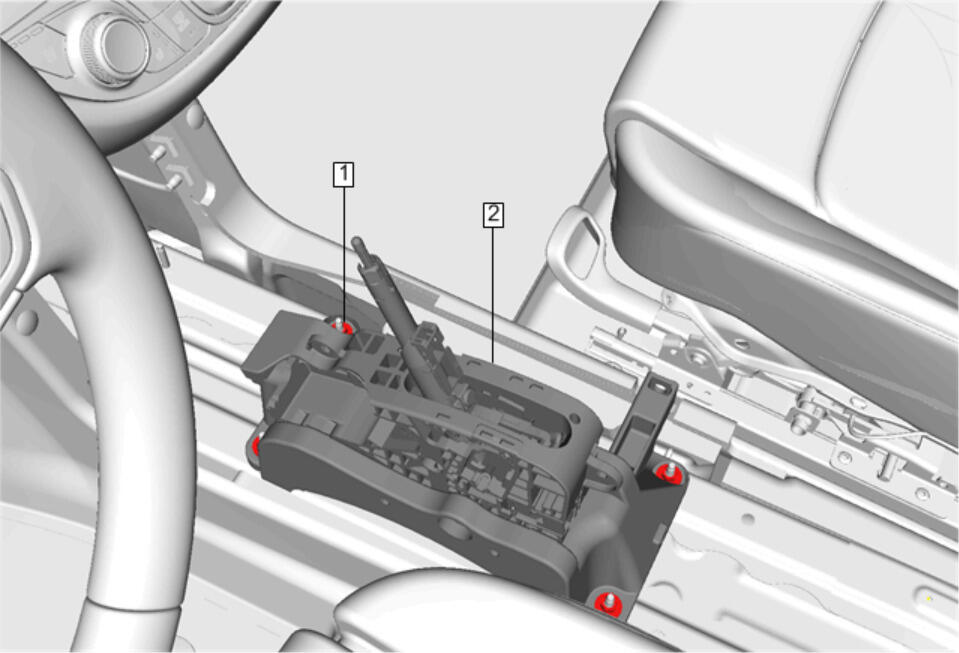

Callout	Component Name
Preliminary Procedures Remove the front floor console. Front Floor Console Replacement . WARNING: After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury. Disconnect the automatic transmission range selector lever cable. Range Selector Lever Cable Replacement . Disconnect the transmission control electrical connectors.
1	Transmission Control Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Transmission Control

Callout

Component Name

Preliminary Procedures

Remove the front floor console. Front Floor Console Replacement .

WARNING:

After installing the transmission range selector shift cable, pull up and push down on ALL connections to verify that the connections are fully seated and properly engaged. Failure to perform this task can result in the vehicle not being able to shift into PARK causing potential vehicle damage and bodily injury.

Disconnect the automatic transmission range selector lever cable. Range Selector Lever Cable Replacement .
Disconnect the transmission control electrical connectors.

Transmission Control Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Transmission Control
