Front Floor Console Rear Air Duct Replacement (Accessory AC and DC Power Control Module Cooler Duct)

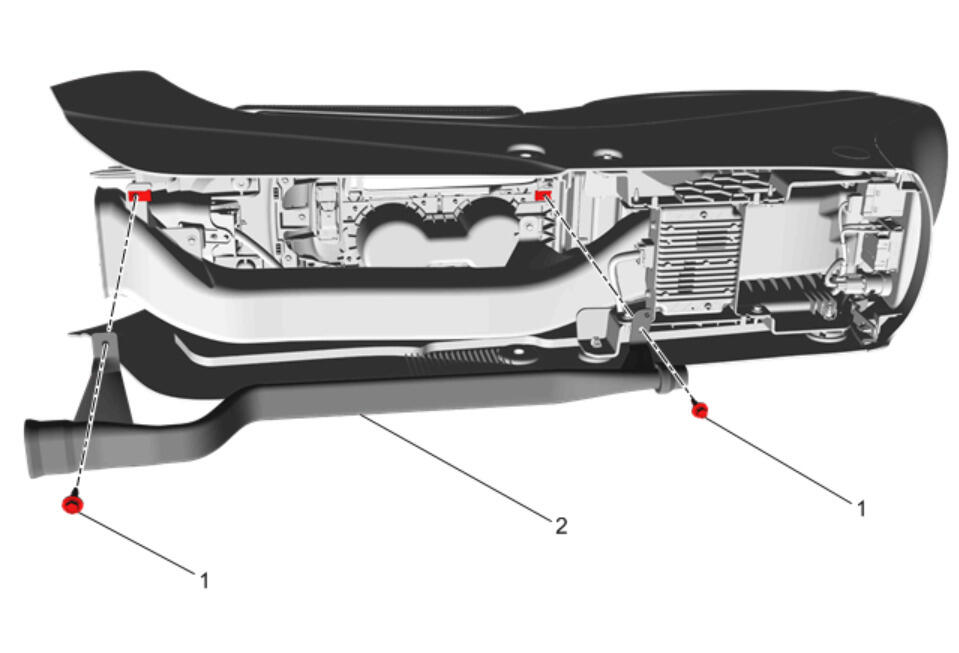

GM4217353Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Replacement
1 Front Floor Console Rear Air Duct Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Floor Console Rear Air Duct - Cooler Duct
