Front Floor Console Replacement

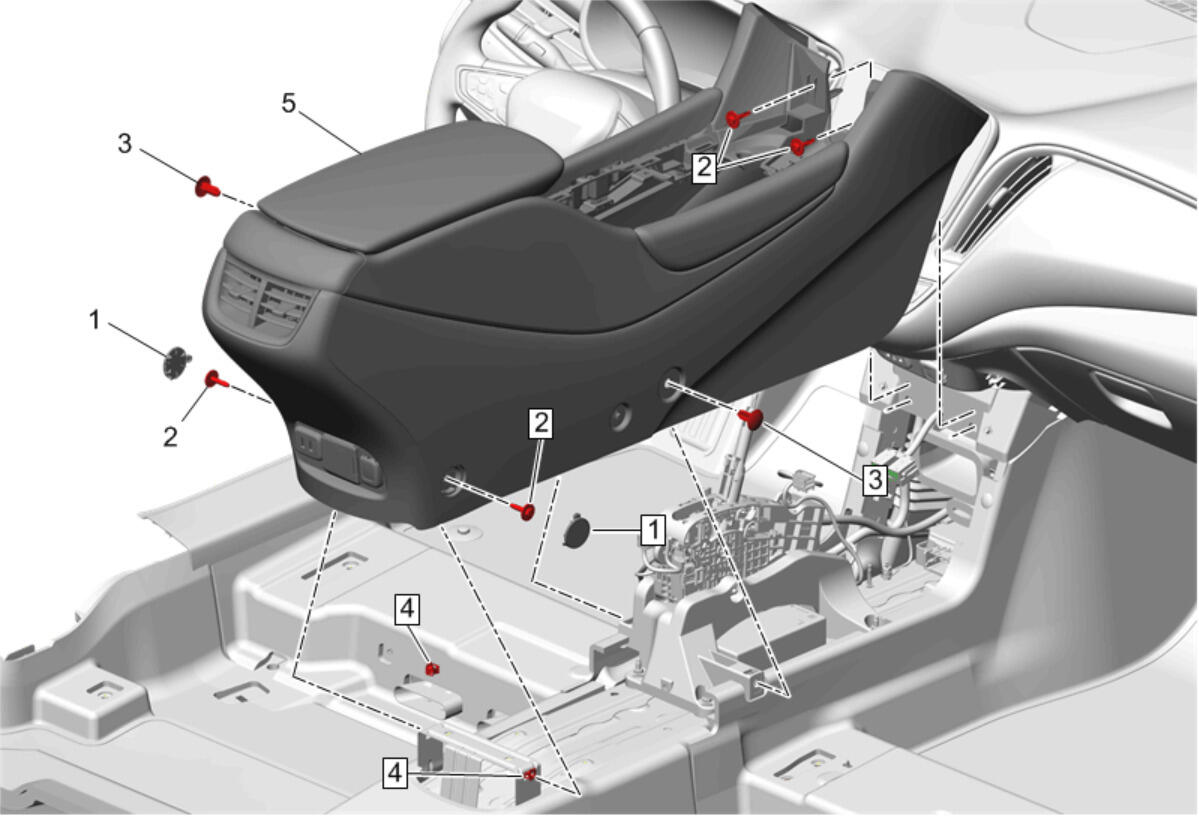

| Callout | Component Name |
|---|---|
|
WARNING:
Chock the wheels to prevent the vehicle from moving. Failure to chock the wheels can cause personal injury when the electrical system is repaired. Preliminary Procedure
|
|
| 1 | Front Floor Console Bolt Access Hole Cover[2x] Procedure Use a flat bladed plastic trim tool. |
| 2 | Front Floor Console Bolt [4x]
CAUTION:
Refer to FASTENER CAUTION . Tighten 7N.m (62 lb in) |
| 3 | Front Floor Console Retainer [2x] Procedure Use a flat bladed plastic trim tool. |
| 4 | Front Floor Console Nut [2x] Procedure If the nuts are disengaged from the bracket it may hinder the removal of the floor console. You will need to remove the front floor console rear trim panel and position the nut back onto the bracket. Front Floor Console Rear Trim Panel Replacement |
| 5 | Front Floor Console Procedure
|
