Preliminary Procedure
- DRIVER OR PASSENGER SEAT REMOVAL AND INSTALLATION
- FRONT SIDE DOOR SILL GARNISH MOLDING REPLACEMENT
- FRONT FLOOR CONSOLE REPLACEMENT
|
| 1 |

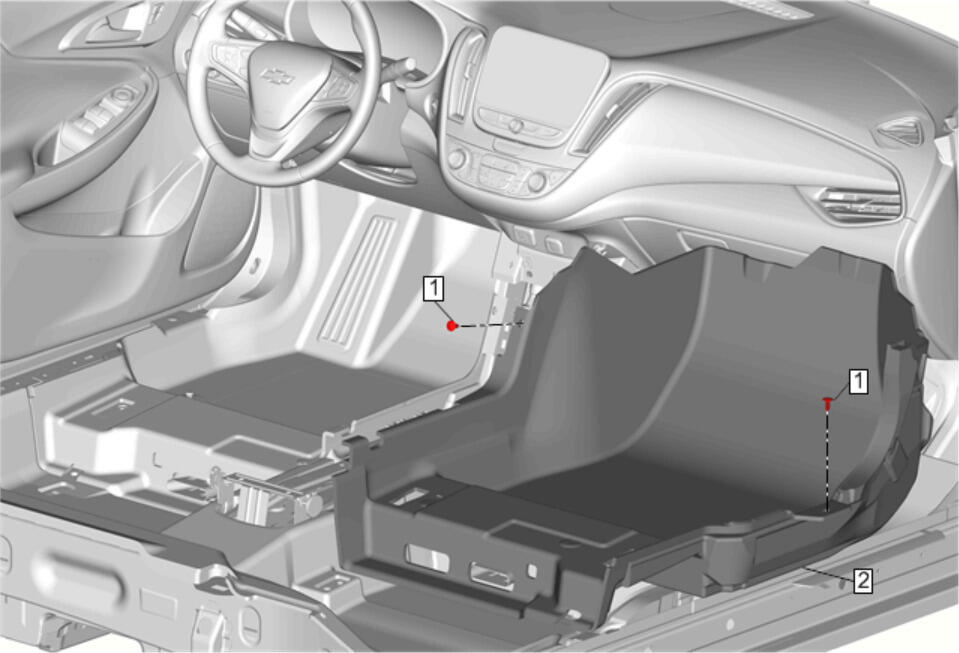

Floor Carpet Retainer[2x]
Procedure
Use a plastic flat-bladed tool to aid in the removal of the push-in retainer. |
| 2 |
Front Floor Panel Carpet
Procedure
Route the body harness lead through the slit in the carpet assembly. |
