Radio Speaker Amplifier Replacement

Courtesy of GENERAL MOTORS COMPANY

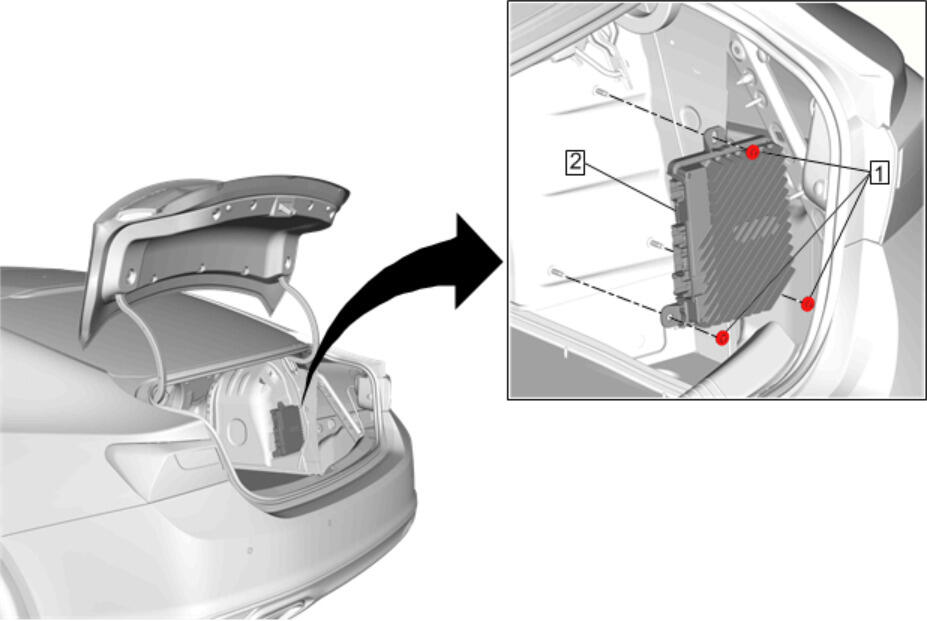

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (Without HP4)Rear Compartment Side Trim Replacement - Right Side (With HP4) - Reposition
1	Radio Speaker Amplifier Nut CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and setup procedures, if required.

Callout

Component Name

Radio Speaker Amplifier Nut

CAUTION:

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and setup procedures, if required.
