Radio Replacement (With U2K)

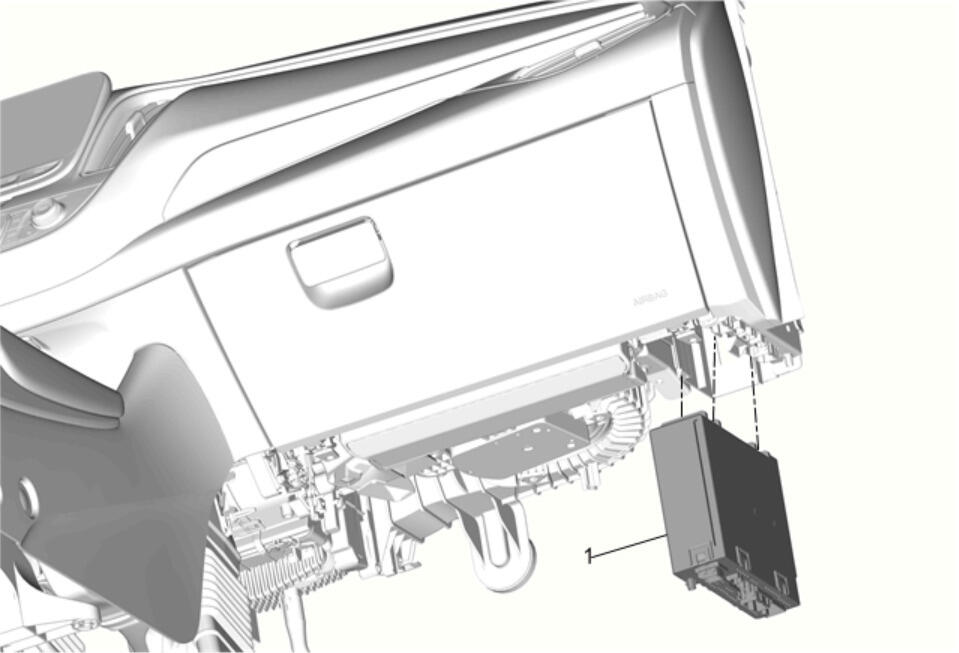

GM4211782Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Lower Trim Panel Insulator Replacement
  2. Front Side Door Sill Garnish Molding Replacement
1 Radio

Procedure

  1. Disconnect the electrical connectors.
  2. Reposition the right side front floor panel carpet away from the radio bracket to provide clearance to remove the radio from the bracket.
  3. Push tabs to release the radio from the bracket and slide downward.
  4. Refer to Control Module References for programming and set up information, if required.
