Instrument Panel Lower Trim Panel Insulator Replacement

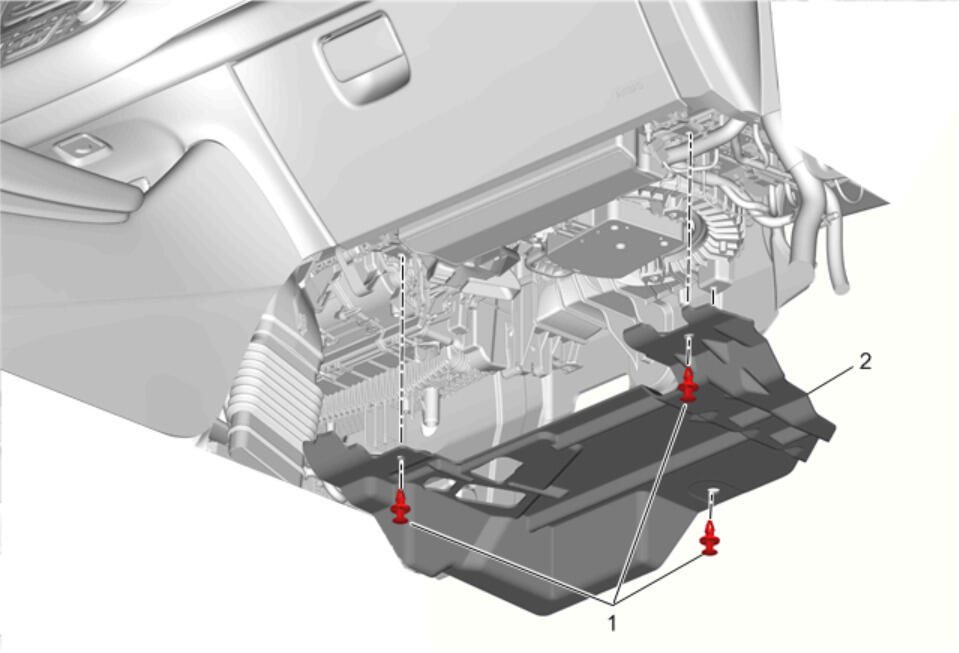

GM4230207
Callout Component Name
WARNING:

Refer to SIR WARNING .

Preliminary Procedure SIR DISABLING AND ENABLING
1 Instrument Panel Lower Insulator Retainer [3x]
Procedure
Use a flat-bladed plastic tool to remove the push-in retainers.
2 Instrument Panel Lower Trim Panel Insulator
