Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Remove the evaporative emission front pipe. Refer to Evaporative Emission Front Pipe Replacement .

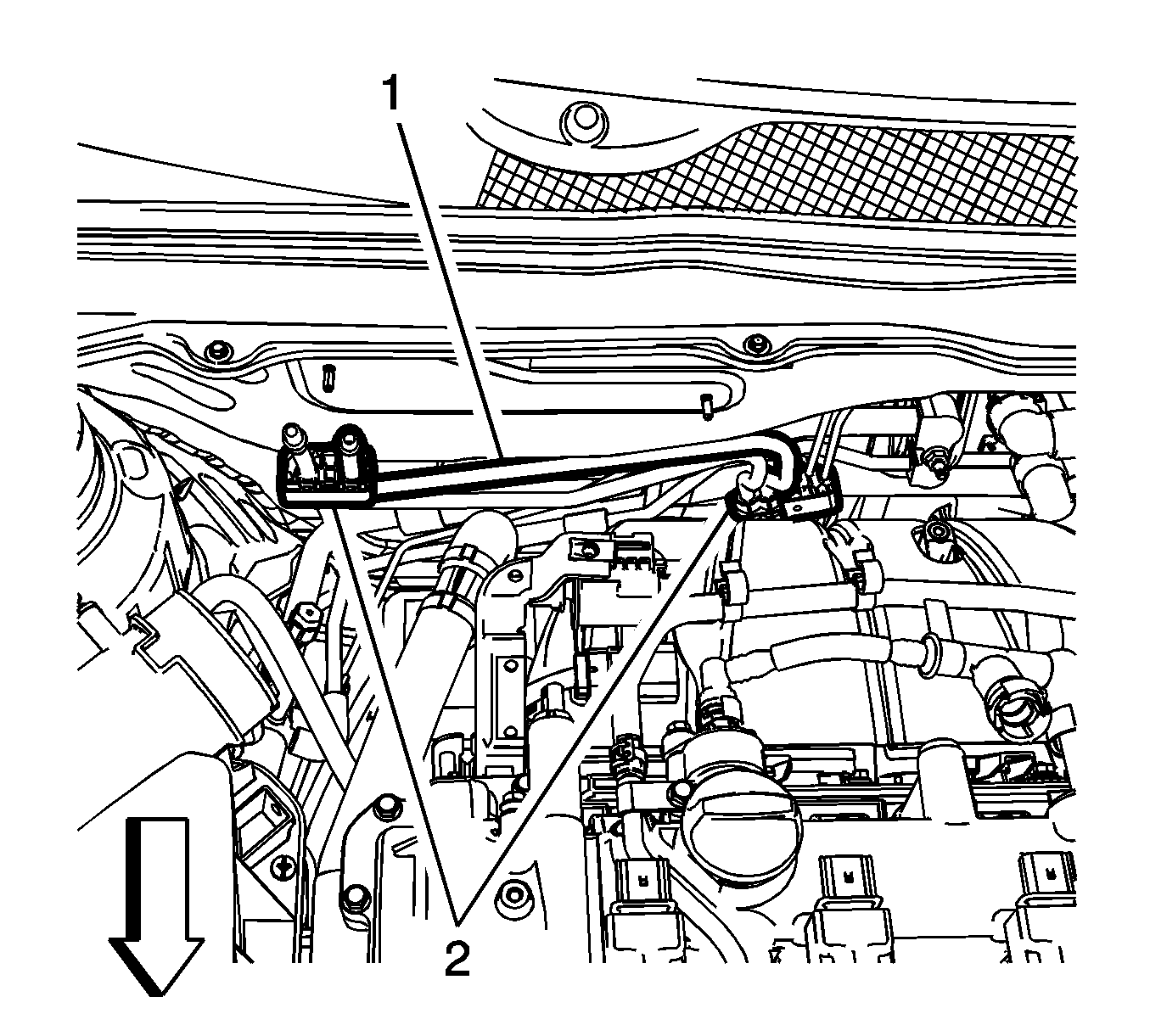

Remove the evaporative emission pipe (1) from the retainers (2).
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- If equipped, remove the right front underbody air deflector. Underbody Front Air Deflector Replacement - Right Side (Tire)Underbody Front Air Deflector Replacement - Right Side (XFE)
- If equipped, remove the right rear underbody air deflector. Underbody Rear Air Deflector Replacement - Right Side
Disconnect the evaporative emission pipe (1) and remove from retainers (2). Refer to Plastic Collar Quick Connect Fitting Service .
- Remove the evaporative emission pipe (1) from the vehicle.
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
