Evaporative Emission Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .

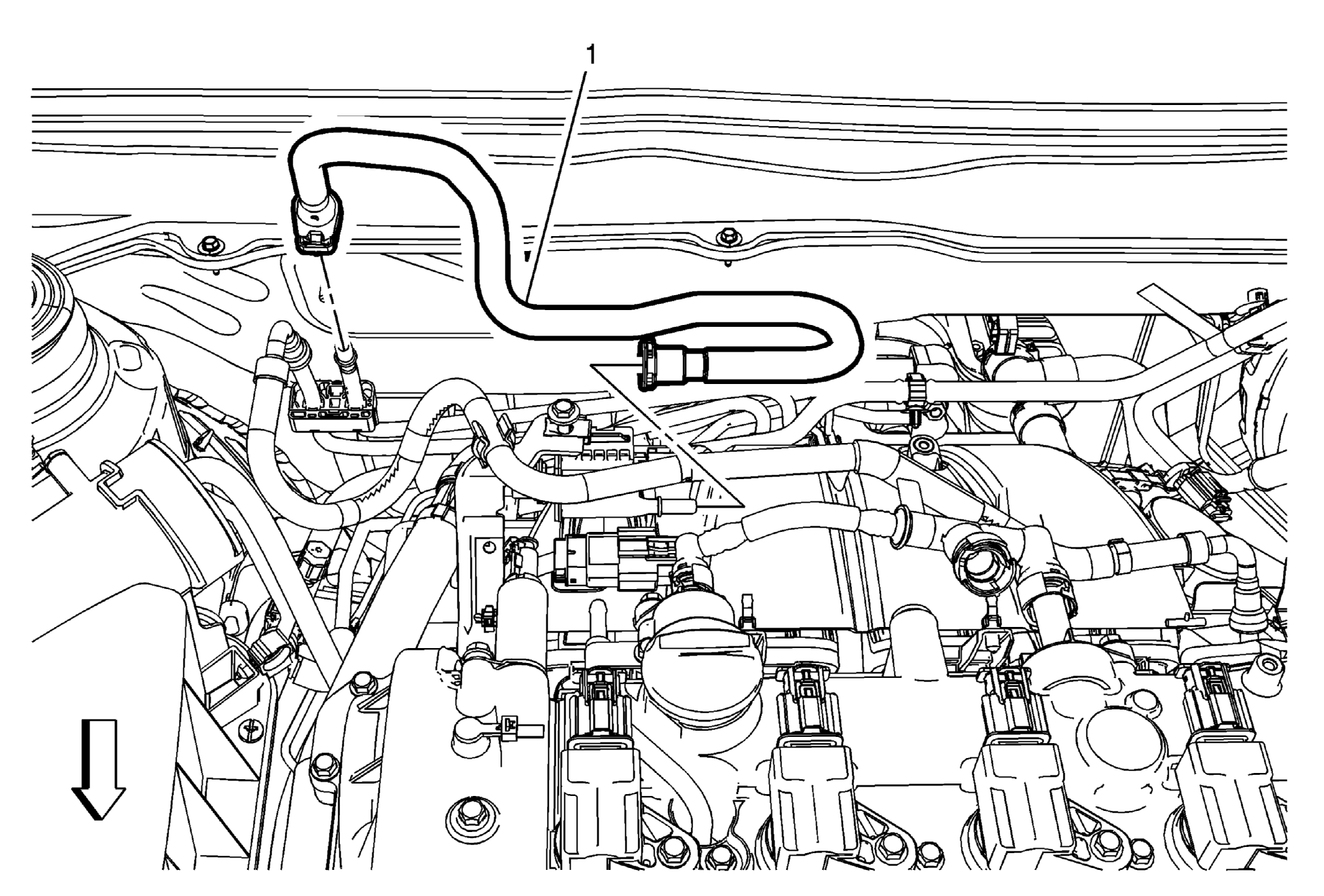

1	Evaporative Emission Front Pipe Procedure Disconnect the evaporative emission front pipe from the purge valve and line. Refer to Plastic Collar Quick Connect Fitting Service .

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement .

Evaporative Emission Front Pipe
Procedure
Disconnect the evaporative emission front pipe from the purge valve and line. Refer to Plastic Collar Quick Connect Fitting Service .
