Drive Chain, Drive Sprocket, and Driven Sprocket Disassemble
WARNING: This page is about a different variant/trim than selected.

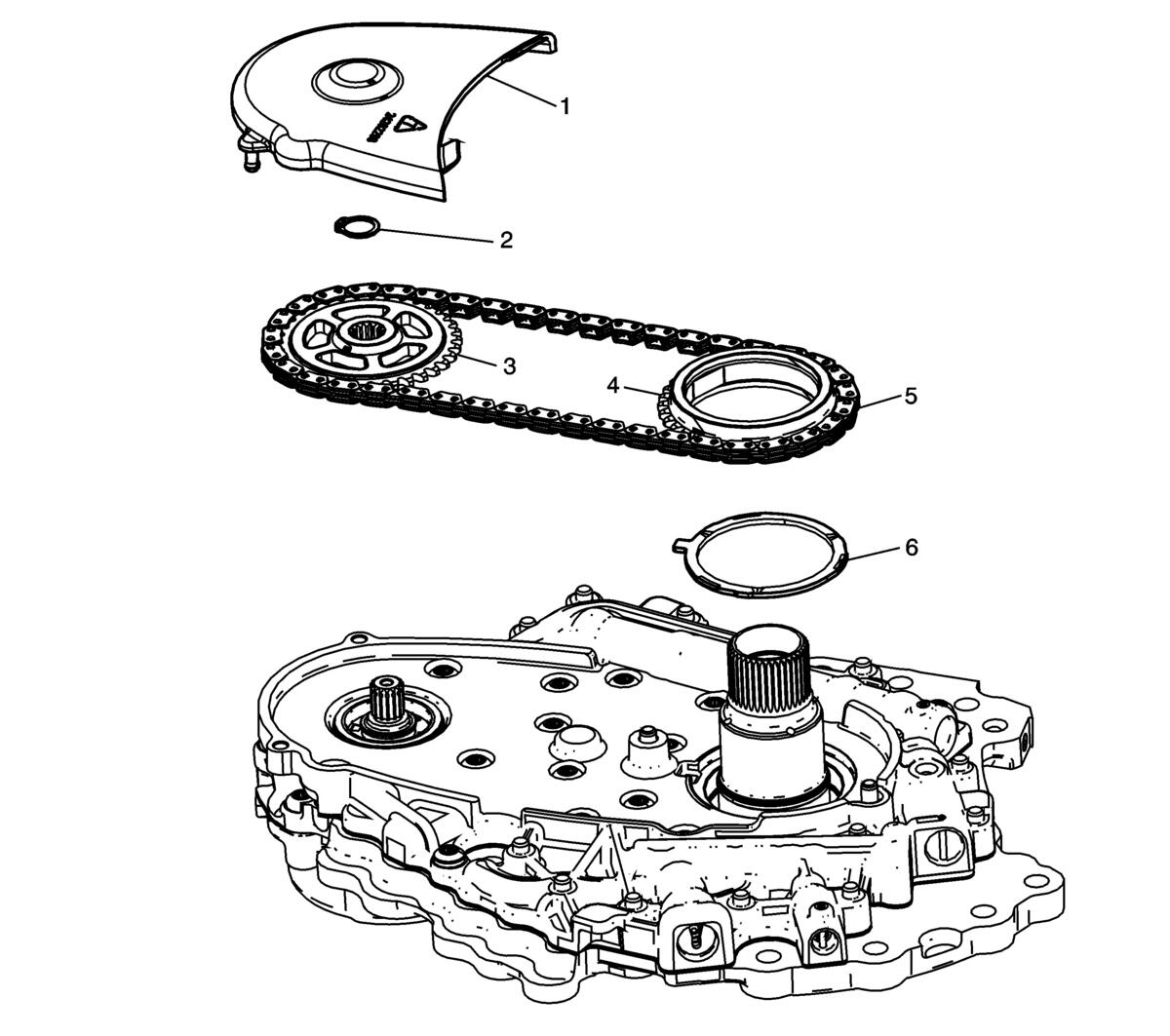

Drive Chain, Drive Sprocket, and Driven Sprocket Disassemble
| Callout |
Component Name |
| 1 |
Transmission Fluid Baffle |
| 2 |
Drive Sprocket Retaining Ring Retainer |
| 3 |
Driven Sprocket
NOTE:
Remove the sprockets and chain at the same time.
|
| 4 |
Drive Sprocket |
| 5 |
Drive Link |
| 6 |
Drive Sprocket Thrust Washer |
