Drive Chain, Drive Sprocket, and Driven Sprocket Assemble

WARNING: This page is about a different variant/trim than selected.

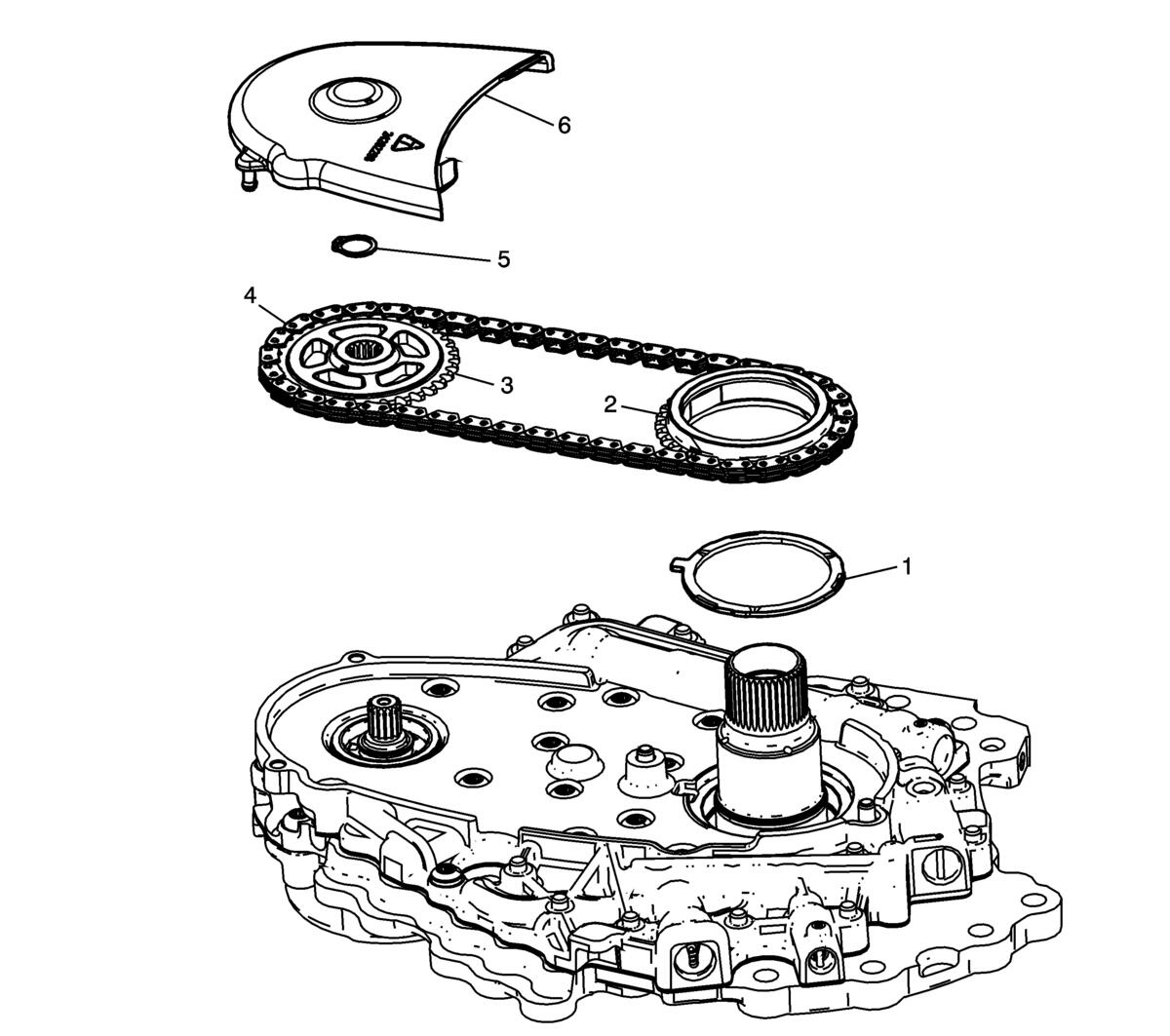

GM3285796
Drive Chain, Drive Sprocket, and Driven Sprocket Assemble

Callout Component Name
1 Drive Sprocket Thrust Washer
2 Drive Sprocket
NOTE:

Install the sprockets and chain together as an assembly..
3 Driven Sprocket
4 Drive Link
5 Drive Sprocket Retaining Ring Retainer
6 Transmission Fluid Baffle
