Radiator Upper Bracket Replacement

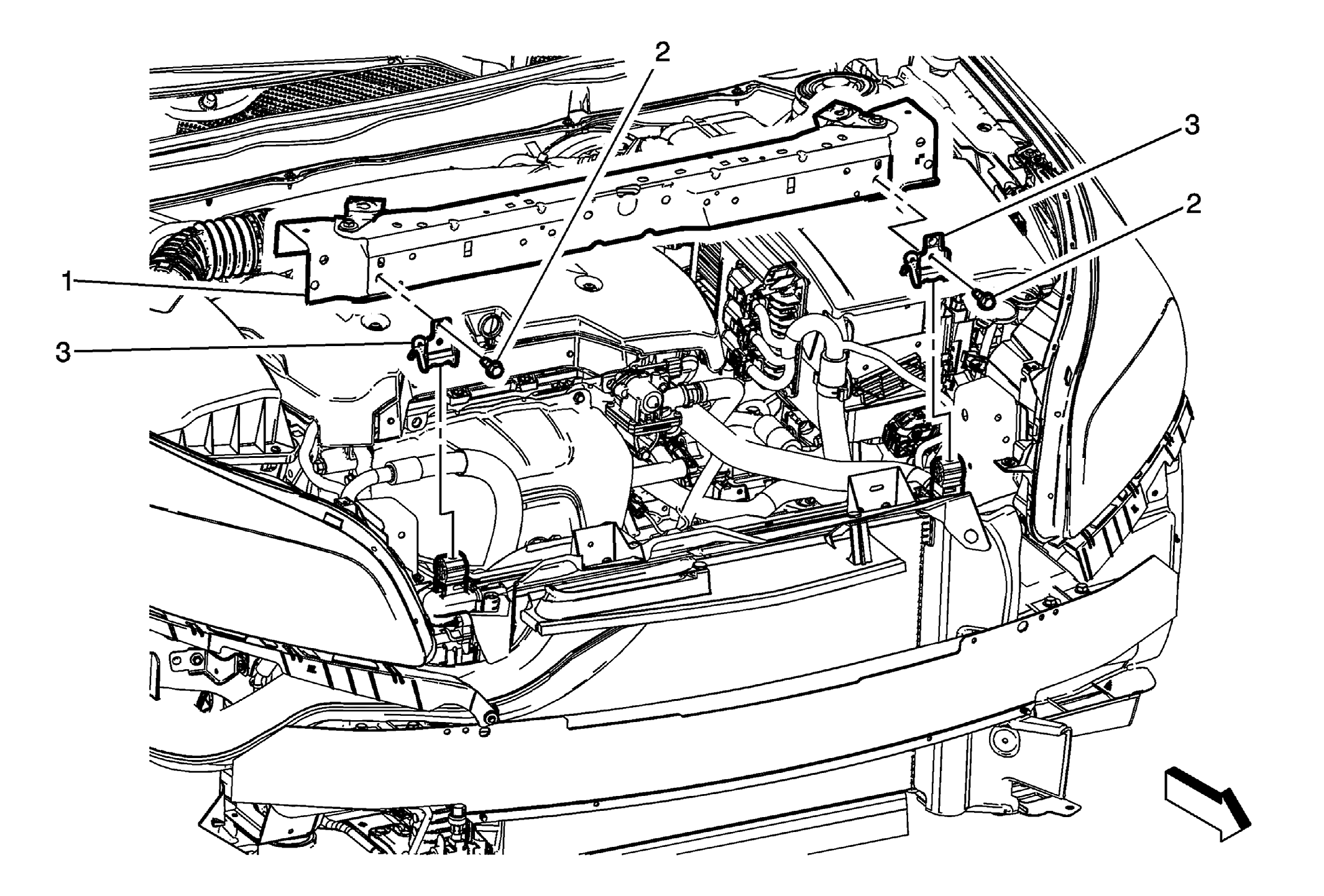

| Callout | Component Name |
|---|---|
| 1 | Front End Upper Tie Bar Procedure Refer to Front End Upper Tie Bar Replacement . |
| 2 | Radiator Upper Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 3 | Radiator Upper Bracket (Qty: 2) |
