Radiator Lower Bracket Replacement (LCV)

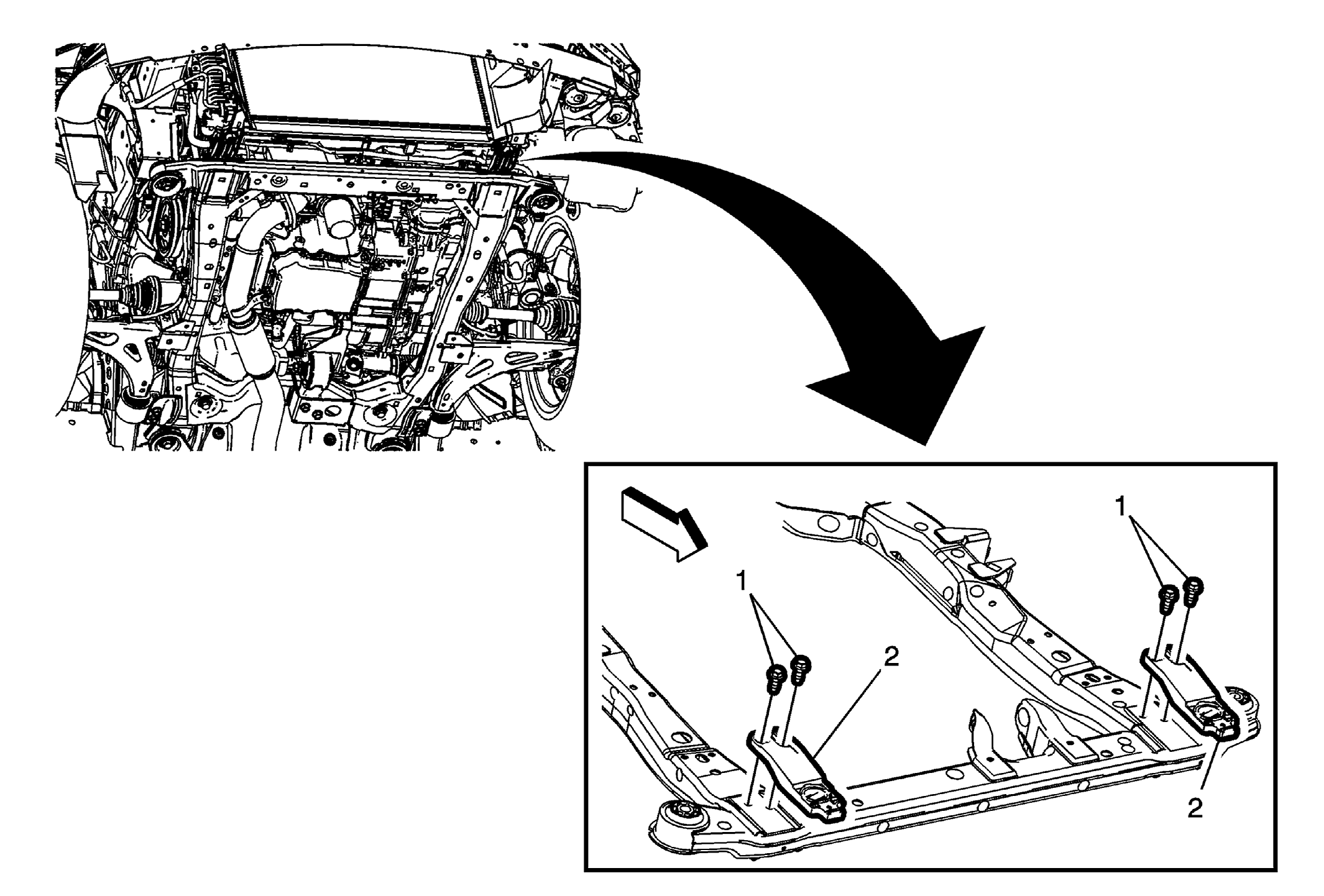

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the radiator air side baffle and deflector retainers from the radiator lower bracket. Support the radiator assembly.
1	Radiator Lower Bracket Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Radiator Lower Bracket (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Remove the radiator air side baffle and deflector retainers from the radiator lower bracket.
Support the radiator assembly.

Radiator Lower Bracket Fastener (Qty: 4)

CAUTION:

Tighten
22 N.m (16 lb ft)

Radiator Lower Bracket (Qty: 2)
