Front Bumper Fascia Reinforcement Replacement - Left Side

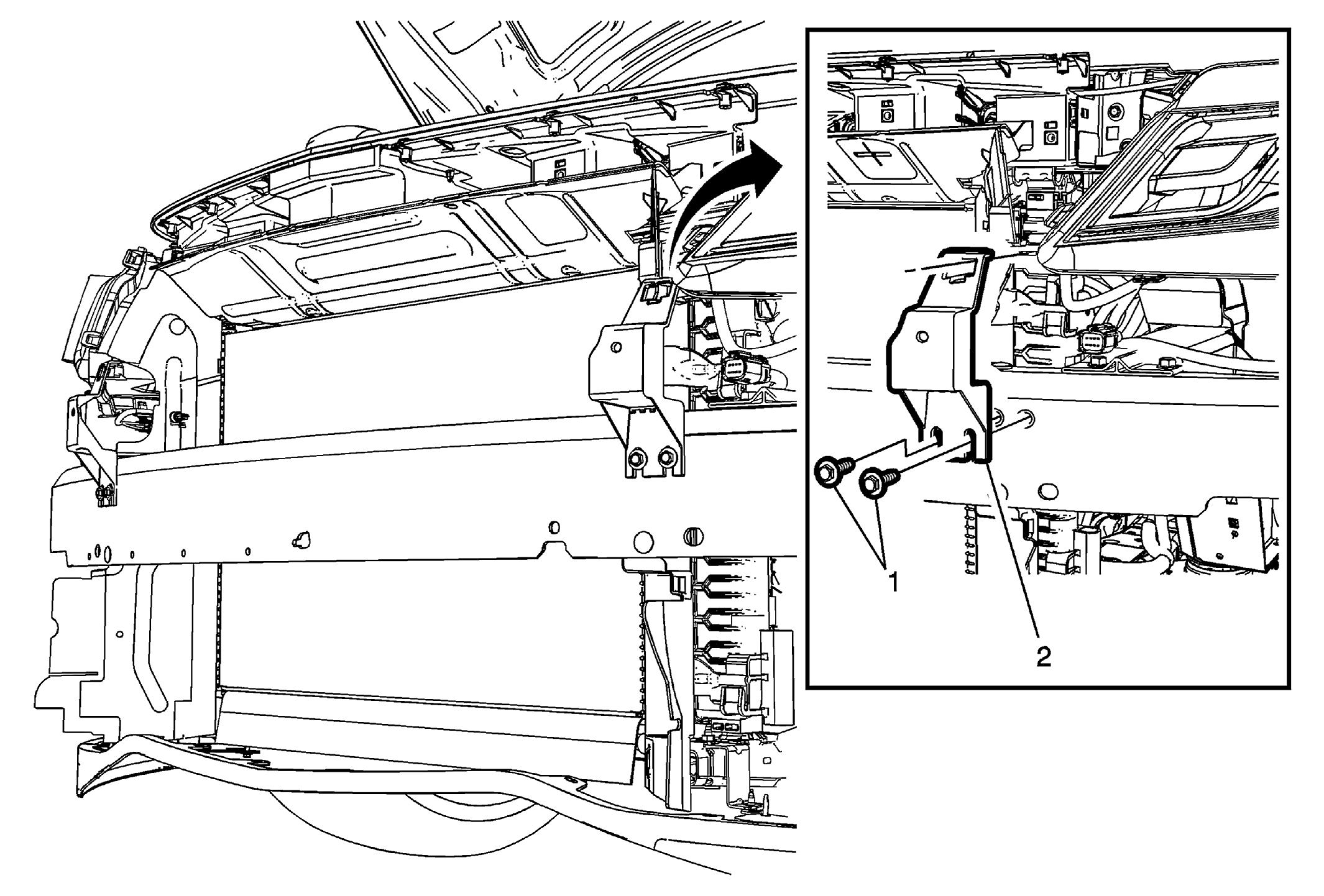

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement |
|
| 1 | Front Bumper Fascia Reinforcement Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Bumper Fascia Reinforcement Left Side
NOTE:
When removing the reinforcement be careful not to damage the tab from the headlamp. This is only serviced with the headlamp. |
