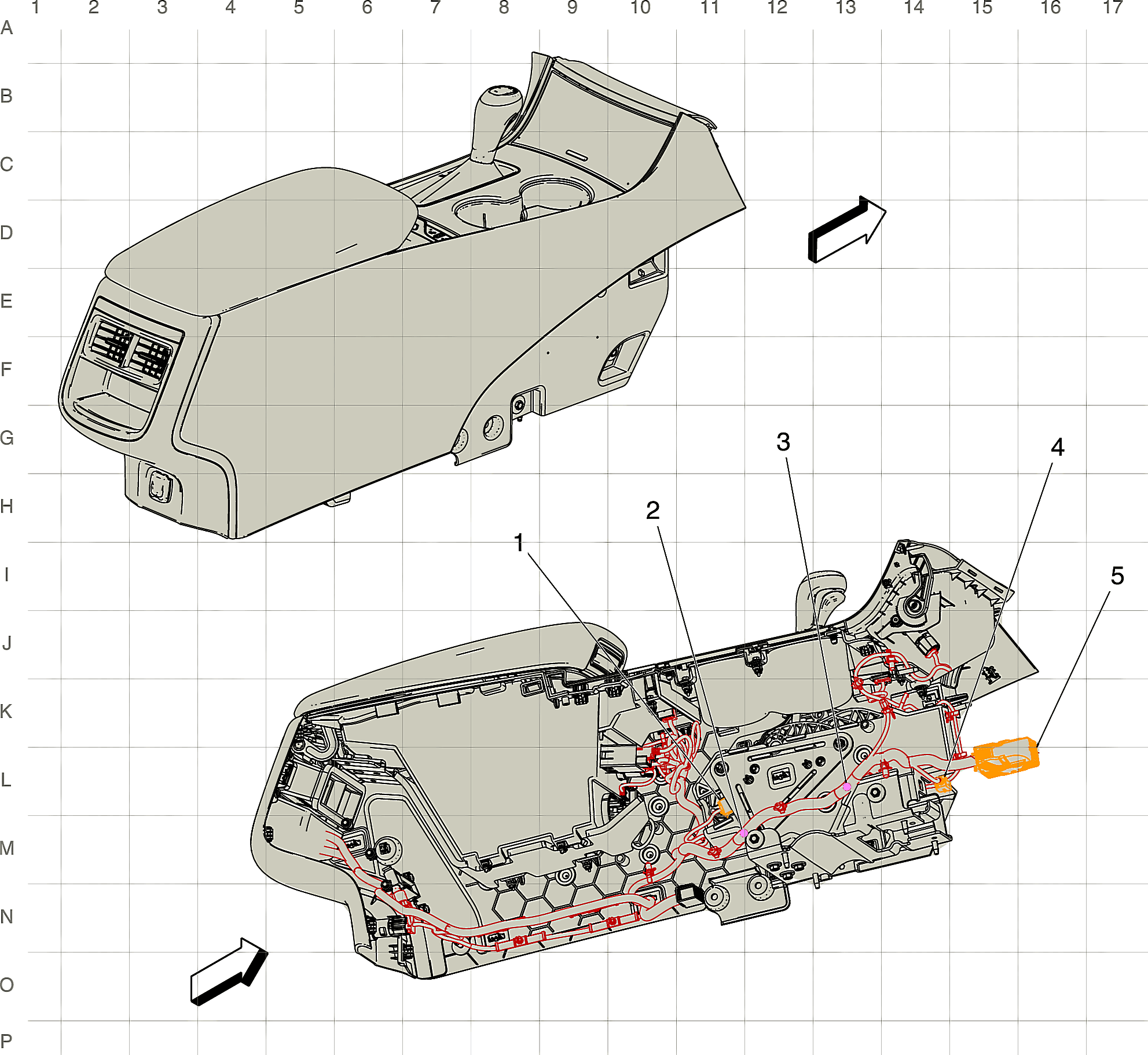

Floor Console Harness Routing

GM2907584Courtesy of GENERAL MOTORS COMPANY
Items
1. X305 Floor Console Harness to Shifter Harness (6 Cavities) X305 Floor Console Harness to Shifter Harness
2. J301 Console Harness
3. J300 Console Harness
4. X301 Instrument Panel Harness USB to Console Harness USB X301 Instrument Panel Harness USB to Console Harness USB
5. X300 Floor Console Harness to Instrument Panel Harness (52 Cavities) X300 Floor Console Harness to Instrument Panel Harness
