Rear Compartment Lid Latch Cover Replacement

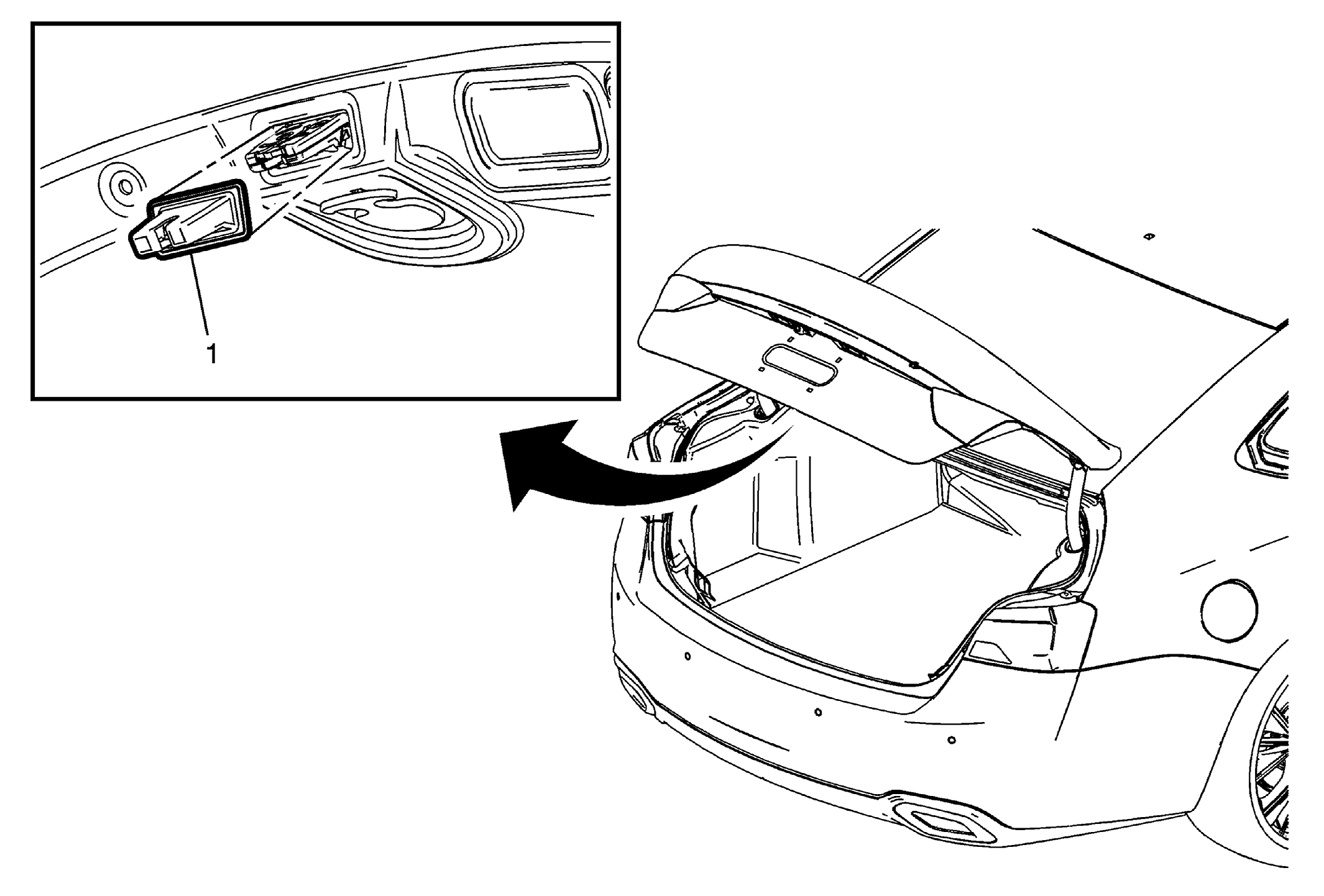

GM2912611
Callout Component Name
1 Rear Compartment Lid Latch Cover Assembly
Procedure
Use a small flat-bladed tool to pull and release the rear compartment lid latch cover.
