Front Bumper Fascia Center Support Replacement

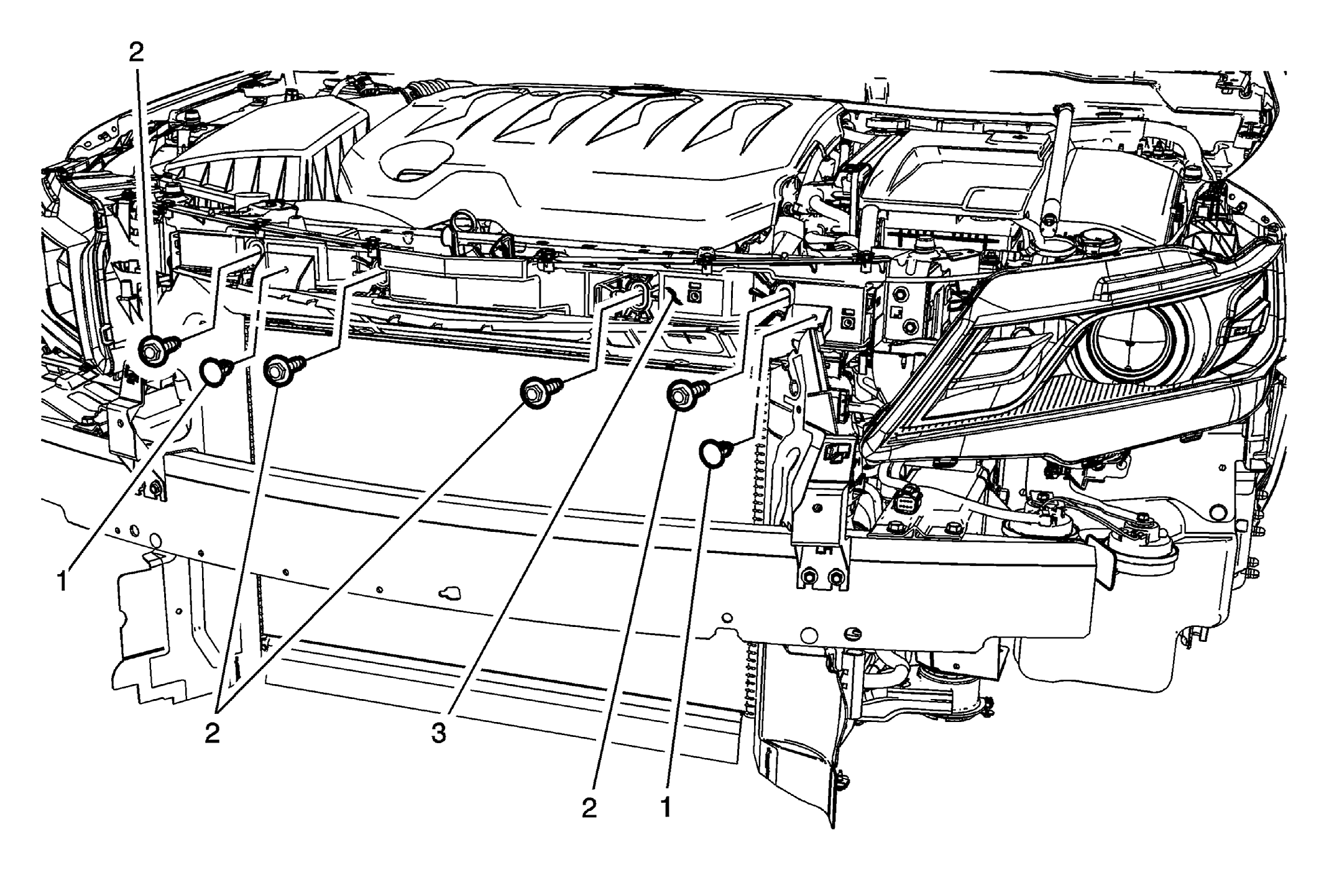

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Air Baffle Push-In Retainer (Qty: 2) |
| 2 | Front Bumper Fascia Center Support Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Front Bumper Fascia Center Support - Upper |
