Rear Compartment Lid Hinge Replacement

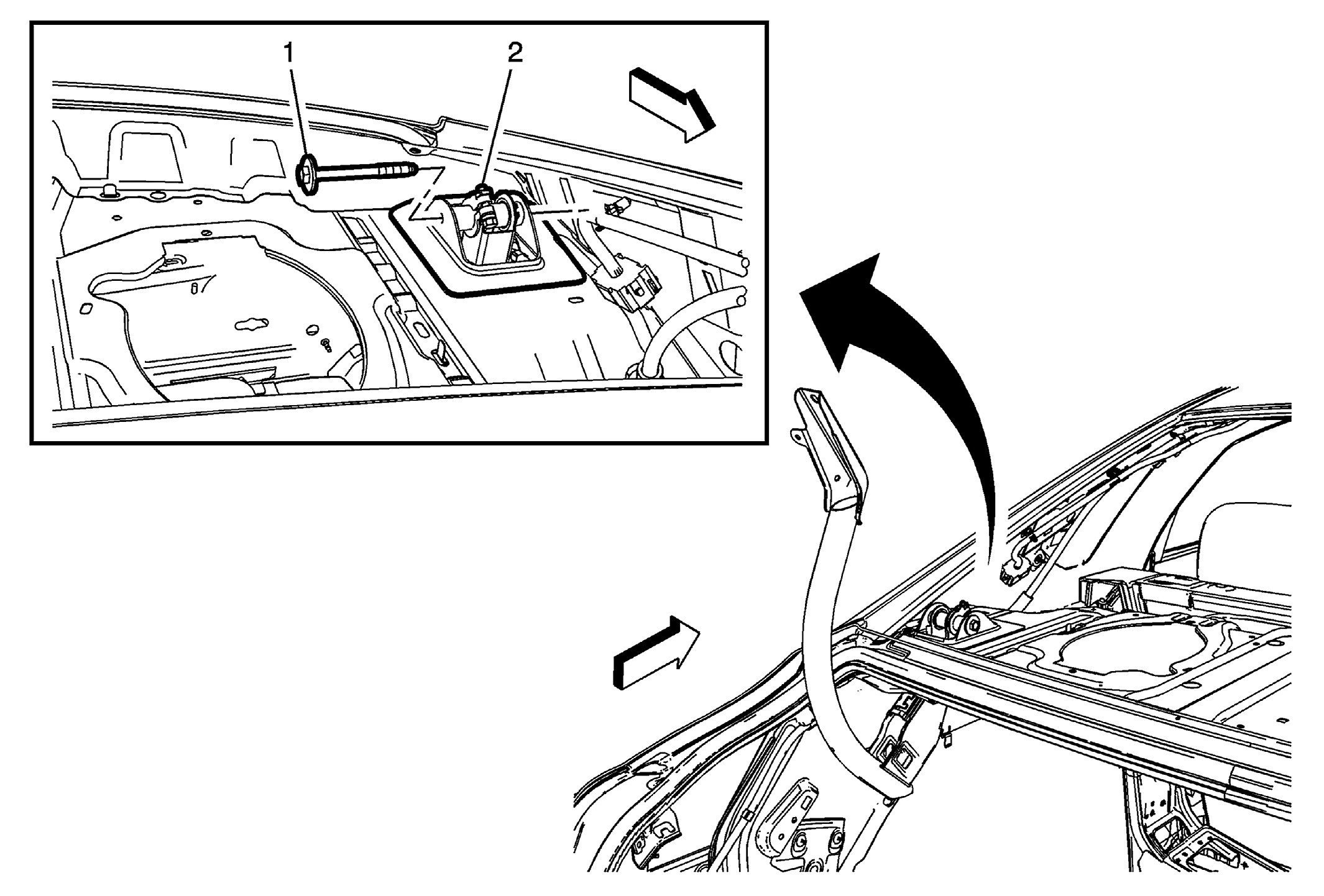

GM2897889

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement .
If equipped reposition the rear window panel trim insulator.
Remove the rear compartment lid hinge spring. Refer to Rear Compartment Lid Hinge Spring Replacement .
Remove the rear compartment lid strut if servicing the right hinge. Refer to Rear Compartment Lid Strut Replacement .

1

Rear Compartment Lid Hinge Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
22 N.m (16 lb ft)

2

Rear Compartment Lid Hinge
Procedure
Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment .
