Hood Primary Latch Release Cable Replacement

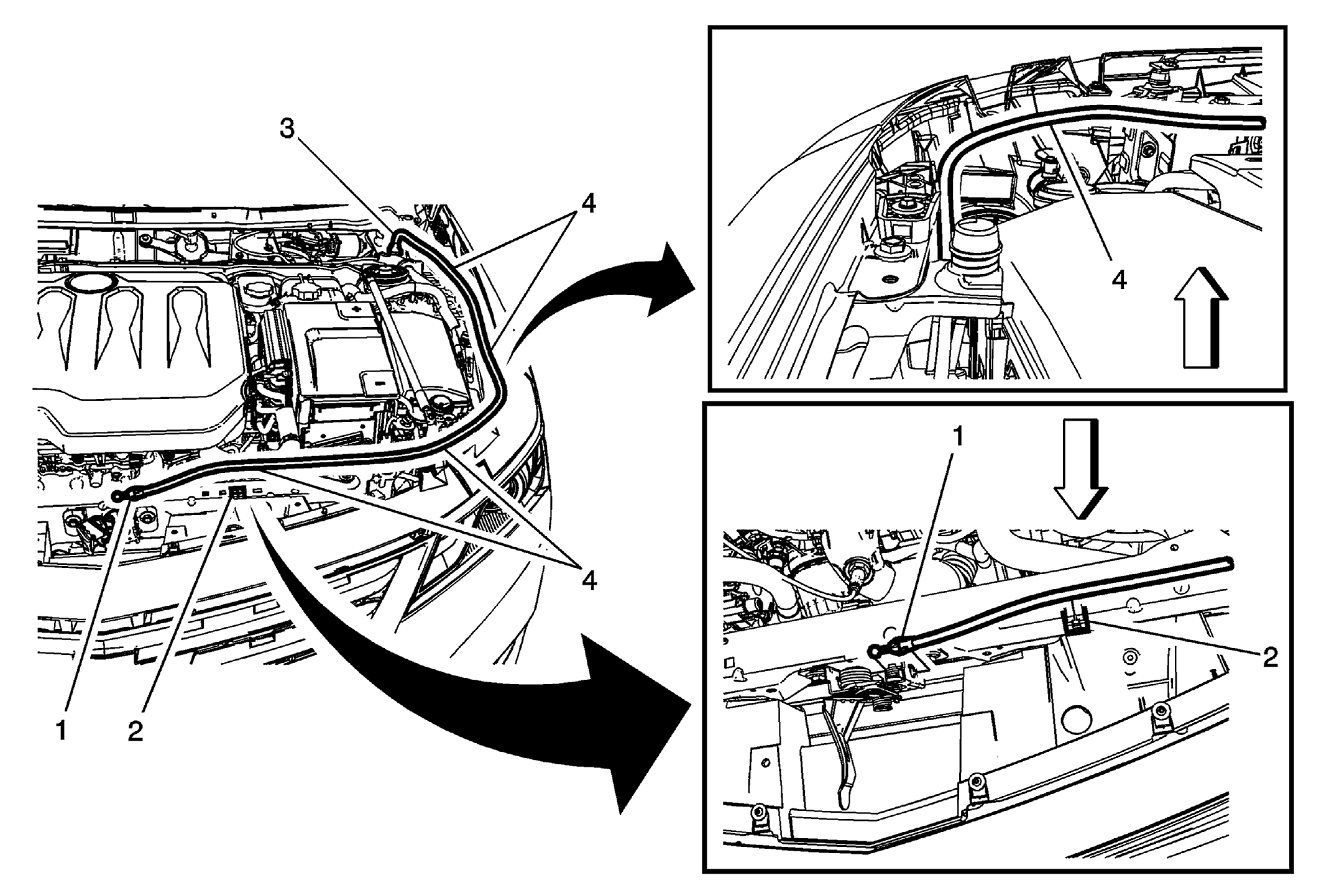

Callout	Component Name

Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement Remove the instrument panel insulator-left side. Refer to Instrument Panel Insulator Replacement - Left Side
1	Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer Procedure Disconnect the hood primary latch release cable from the hood primary latch release cable retainer.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Disconnect the hood primary latch release cable handle from the instrument panel tie bar.
