Dash Panel Brace Replacement

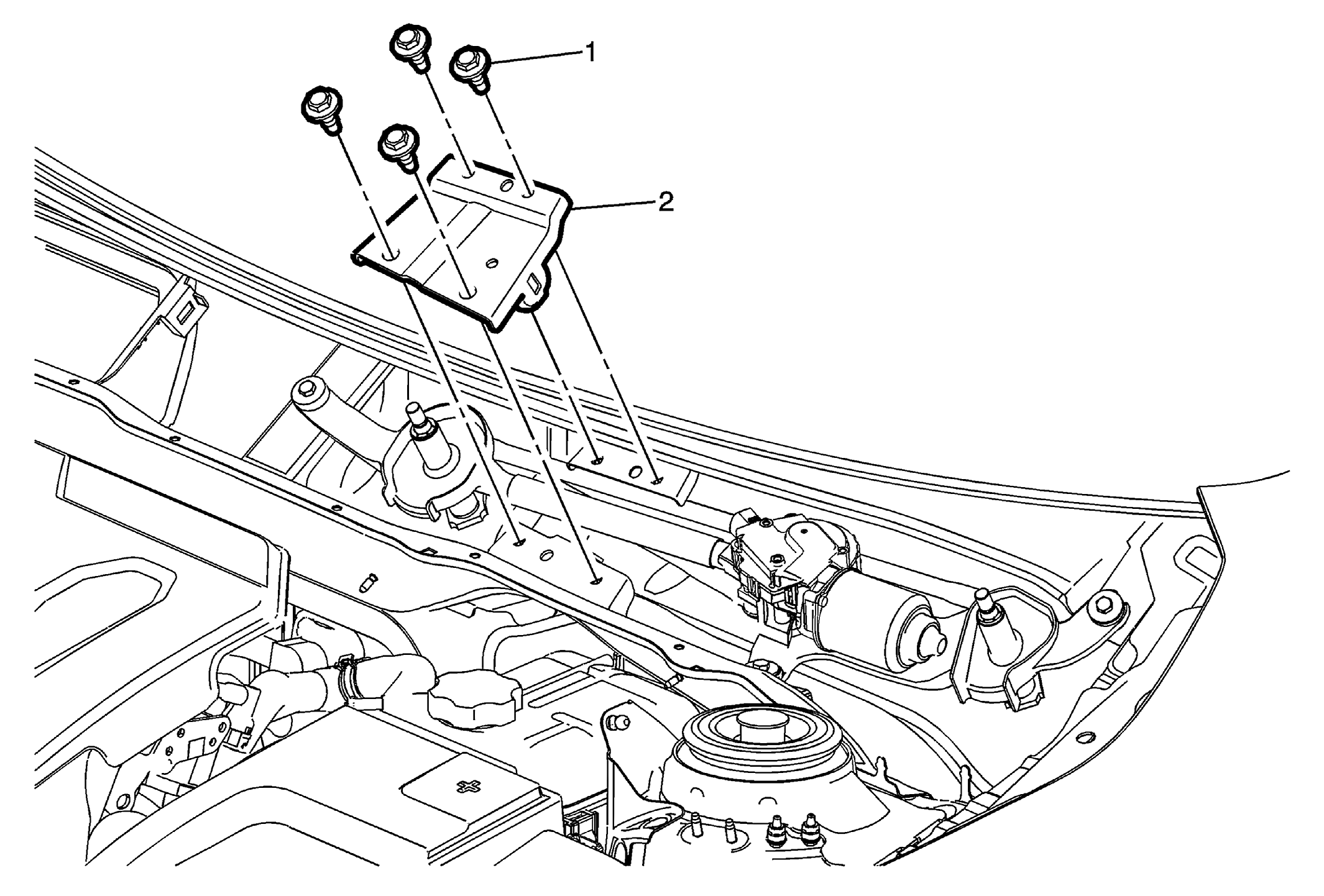

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . |
|
| 1 | Dash Panel Brace Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Dash Panel Brace |
