Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Drain fuel tank below filler pipe. Fuel Tank Draining
  2. Remove Fuel Tank Filler Pipe Housing - Fuel Tank Filler Pipe Housing Replacement (Equinox)Fuel Tank Filler Pipe Housing Replacement (Terrain)
  3. Remove Rear Wheelhouse Liner-Left Side - Rear Wheelhouse Liner Replacement- Left Side (Equinox)Rear Wheelhouse Liner Replacement- Left Side (Terrain)

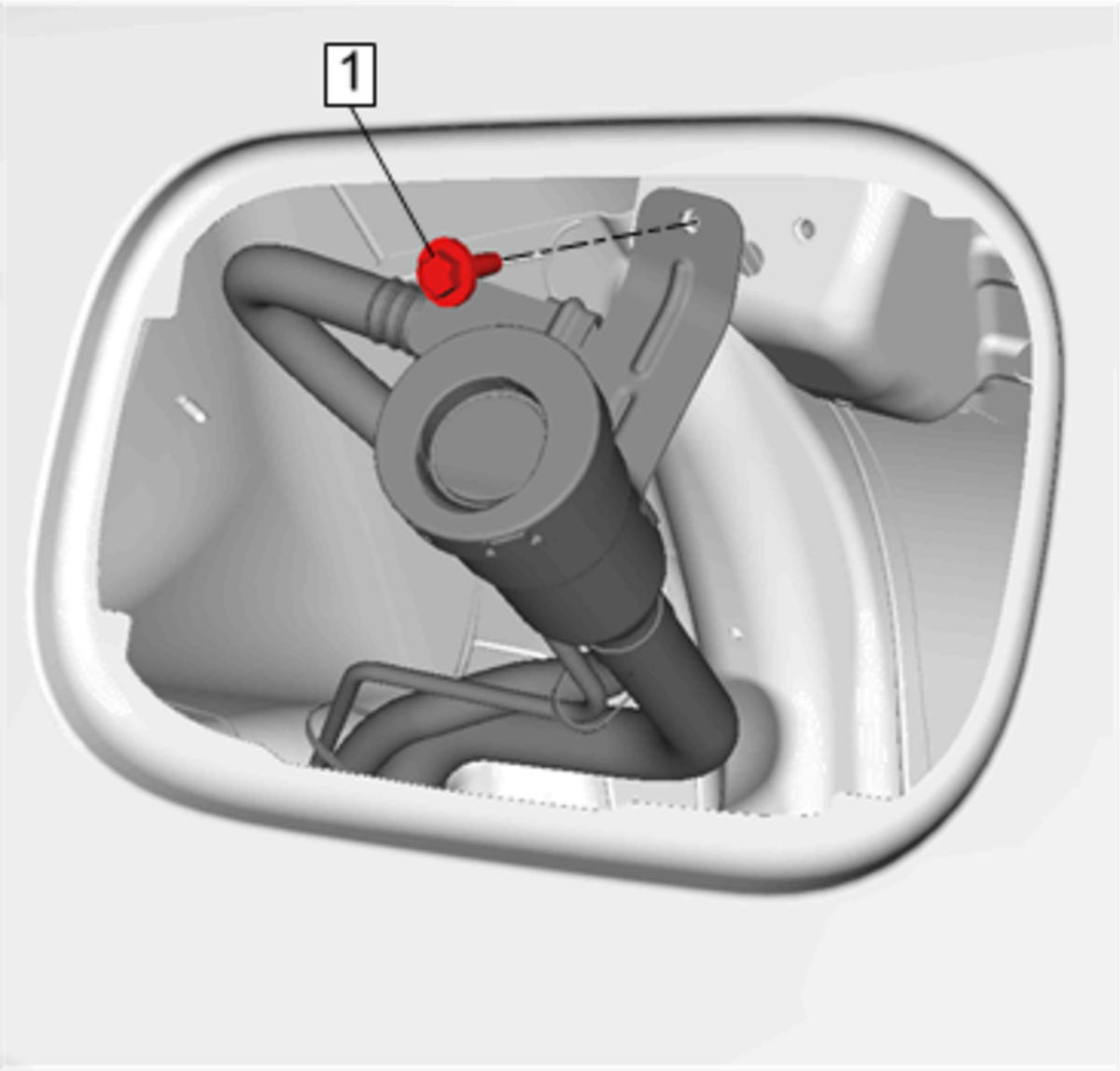

    4. Fig 1: Fuel Tank Filler Pipe Ground Bolt
    GM4597394Courtesy of GENERAL MOTORS COMPANY
  4. Remove Fuel Tank Filler Pipe Ground Bolt (1)

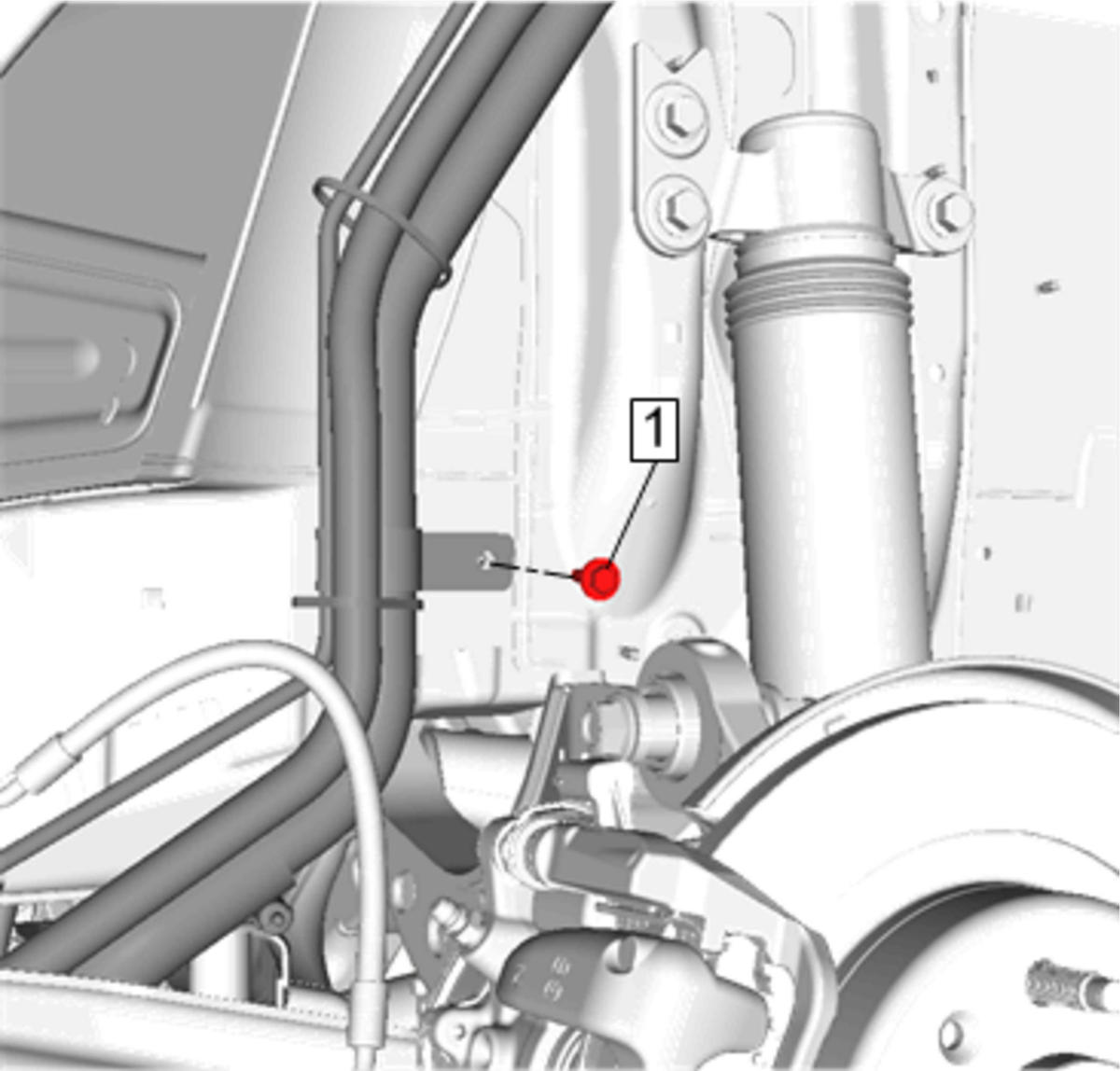

    5. Fig 2: Fuel Tank Filler Pipe Ground Bolt
    GM4597397Courtesy of GENERAL MOTORS COMPANY
  5. Remove Fuel Tank Filler Pipe Ground Bolt (1)

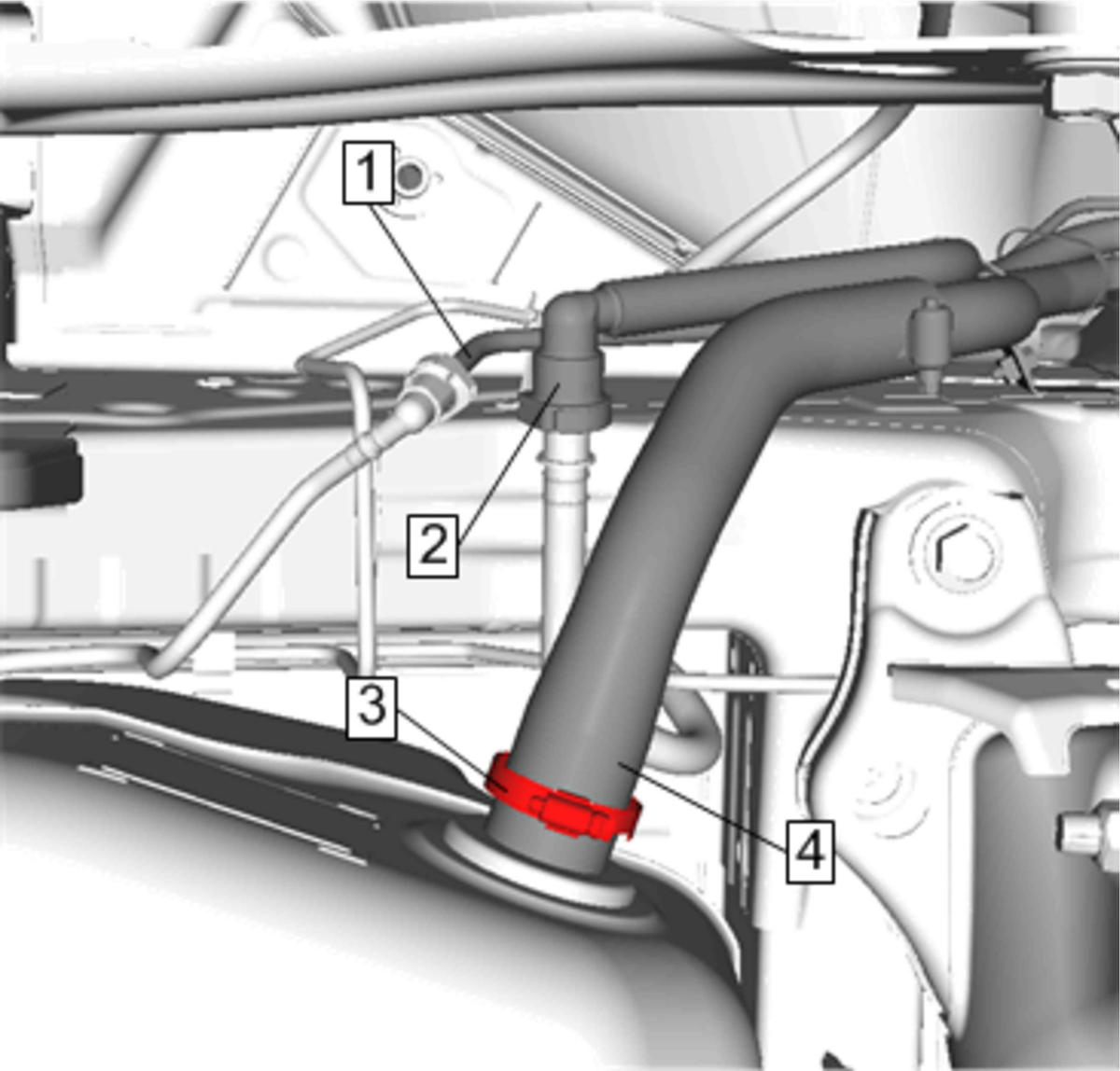

    6. Fig 3: Fuel Tank Filler Pipe
    GM4597398Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect Fuel Tank Filler Pipe (1) - Plastic Collar Quick Connect Fitting Service
  7. Disconnect Evaporative Emission Canister Vent Hose (2) - Plastic Collar Quick Connect Fitting Service
  8. Remove Fuel Tank Filler Hose Clamp (3)
  9. Remove Fuel Tank Filler Hose (4)

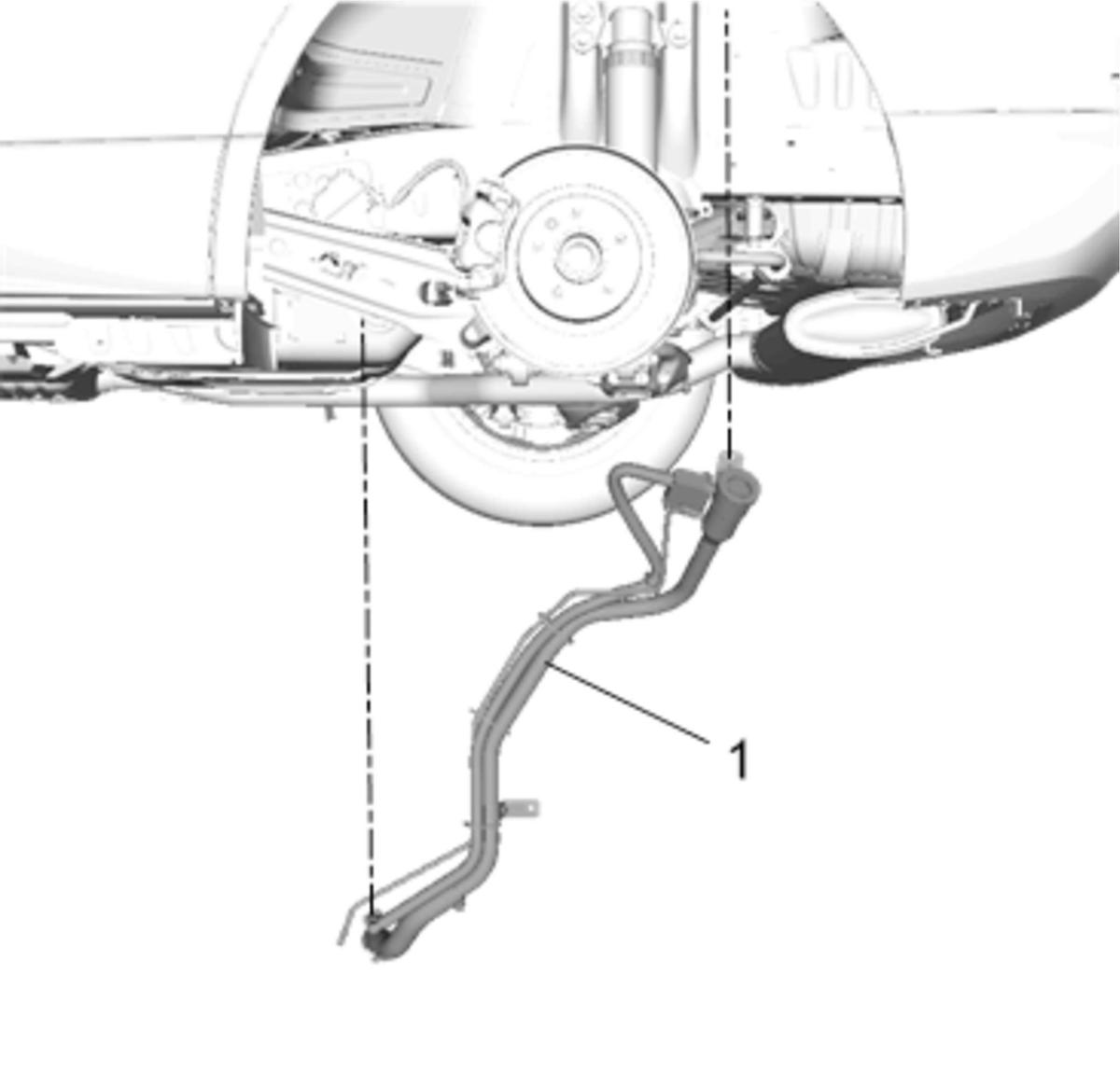

    10. Fig 4: Fuel Tank Filler Pipe
    GM4597401Courtesy of GENERAL MOTORS COMPANY
  10. Remove Fuel Tank Filler Pipe (1)
