Rear Wheelhouse Liner Replacement - Left Side (Terrain)

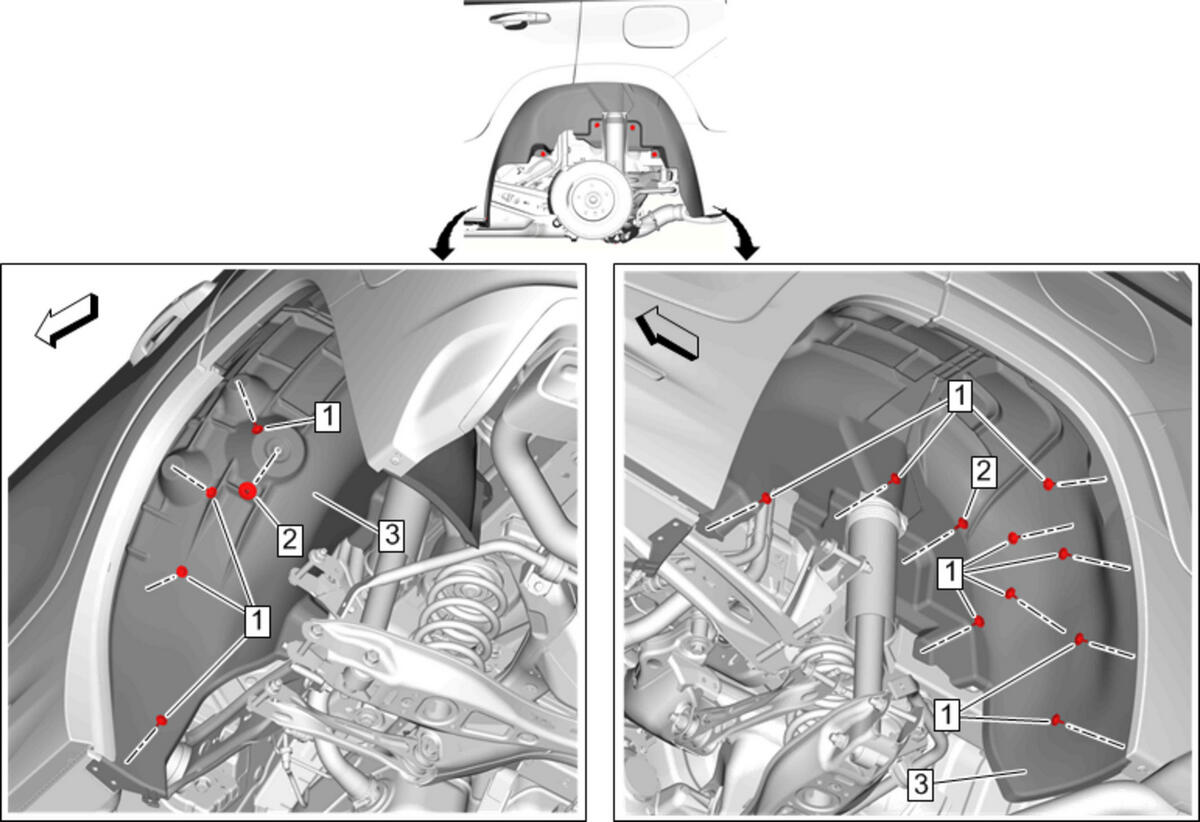

Fig 1: Rear Wheelhouse Liner - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the tire and wheel assembly. Tire and Wheel Removal and Installation Rear Tire Front Air Deflector Replacement (Terrain)
1	Rear Wheelhouse Liner Bolt [13x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Retainer[2x]
3	Rear Wheelhouse Liner - Left Side Procedure  Install the tire and wheel assembly. Tire and Wheel Removal and Installation
