Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove Charge Air Cooler Outlet Air Tube - Charge Air Cooler Outlet Air Tube Replacement
  2. Remove Intake Manifold Cover - Intake Manifold Cover Replacement

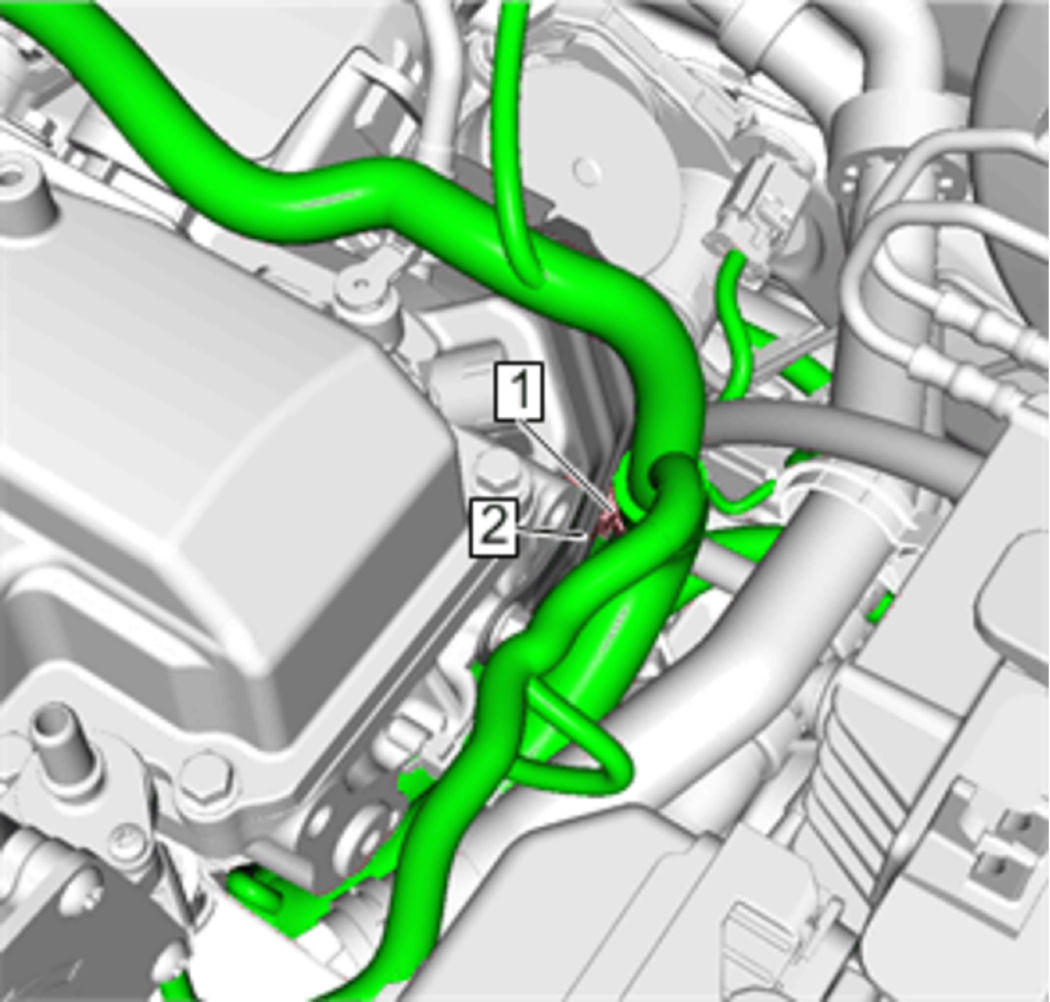

    3. Fig 1: Engine Wiring Harness Retainer And Fuel Pump Cover
    GM4676100Courtesy of GENERAL MOTORS COMPANY
  3. Remove Engine Wiring Harness Retainer (1) @ Fuel Pump Cover (2).

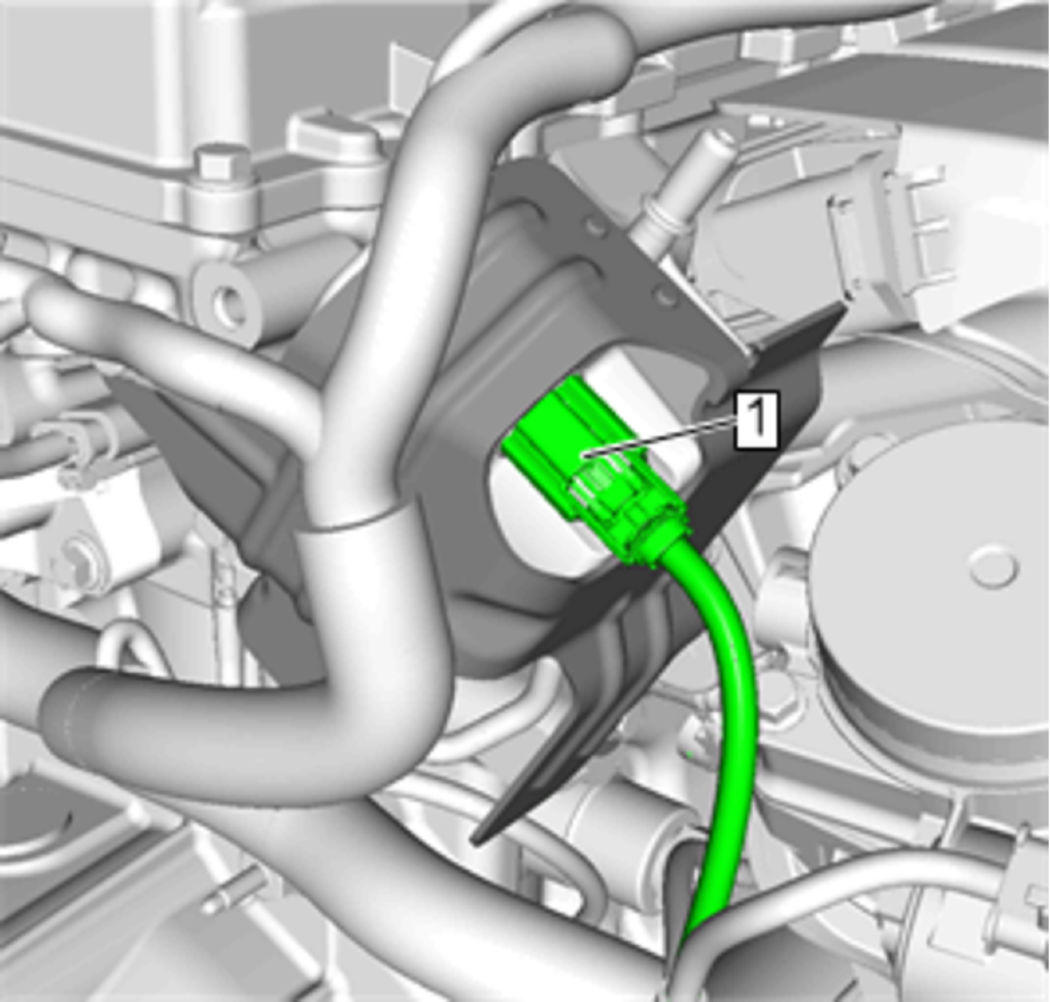

    4. Fig 2: Electrical Connector
    GM4676113Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Electrical Connector (1) @ Fuel Pump

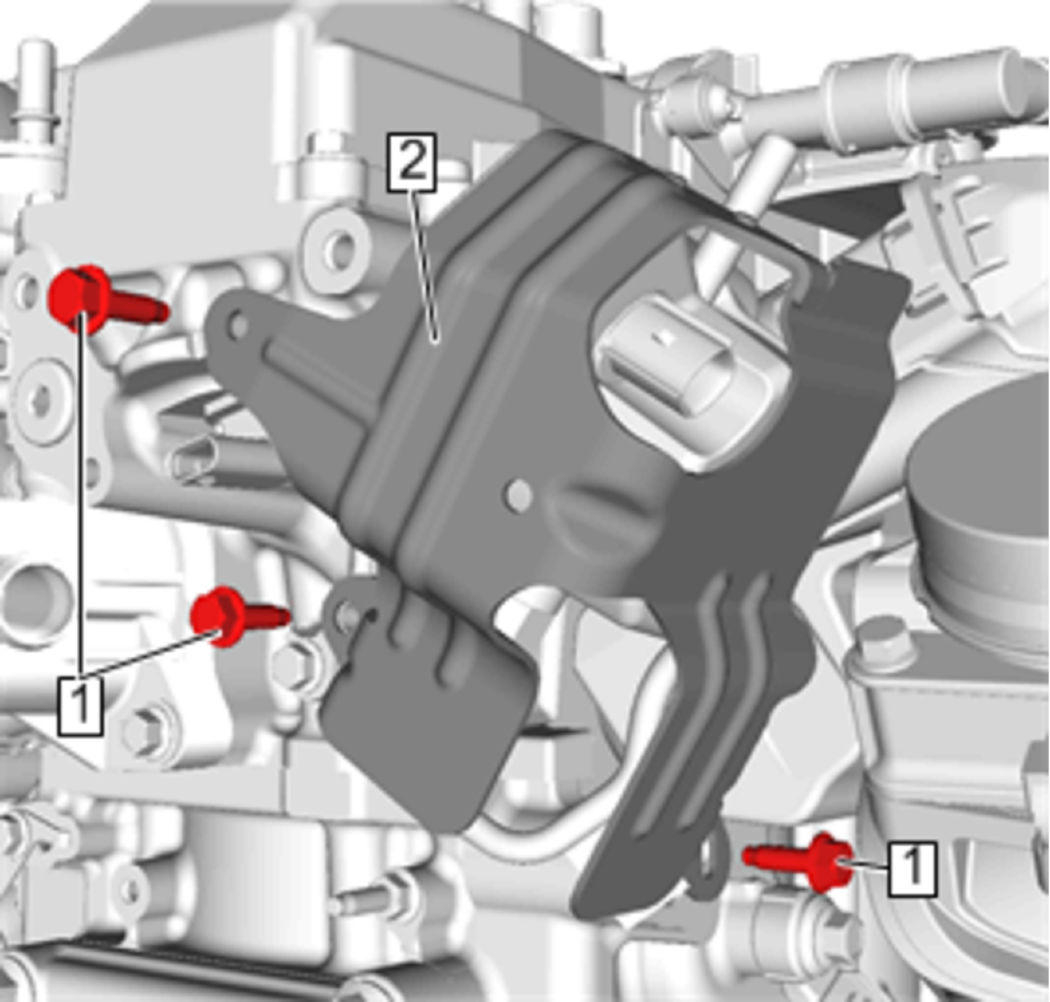

    5. Fig 3: Fuel Pump Shield Bolt
    GM4676116Courtesy of GENERAL MOTORS COMPANY
  5. Remove Fuel Pump Shield Bolt (1) - [3x]
  6. Remove Fuel Pump Cover (2).
