Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Remove Intake Manifold Cover - Intake Manifold Cover Replacement

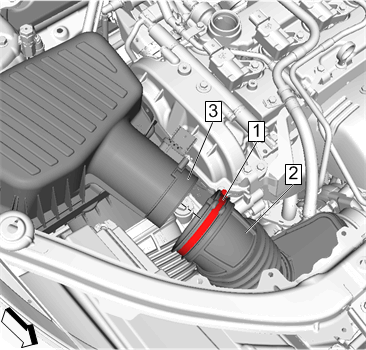

Fig 1: Air Cleaner Outlet Duct, Clamp And Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Loosen Air Cleaner Outlet Duct Clamp (1)
Remove Air Cleaner Outlet Duct (2) @ Air Cleaner Assembly (3)

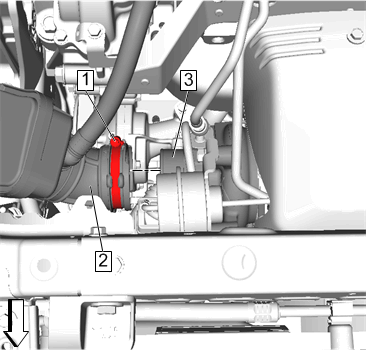

Fig 2: Air Cleaner Outlet Duct Clamp And Turbocharger Assembly

Courtesy of GENERAL MOTORS COMPANY

Loosen Air Cleaner Outlet Duct Clamp (1).
Remove Air Cleaner Outlet Duct (2) @ Turbocharger Assembly (3).

Fig 3: Positive Crankcase Ventilation Tube Bolt

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Due to the PCV tamper-resistant connections, the air cleaner outlet duct must be repositioned during repair. Do NOT damage the tamper-resistant connections.

Remove Positive Crankcase Ventilation Tube Bolt (1) - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Camshaft Cover to Air Inlet)

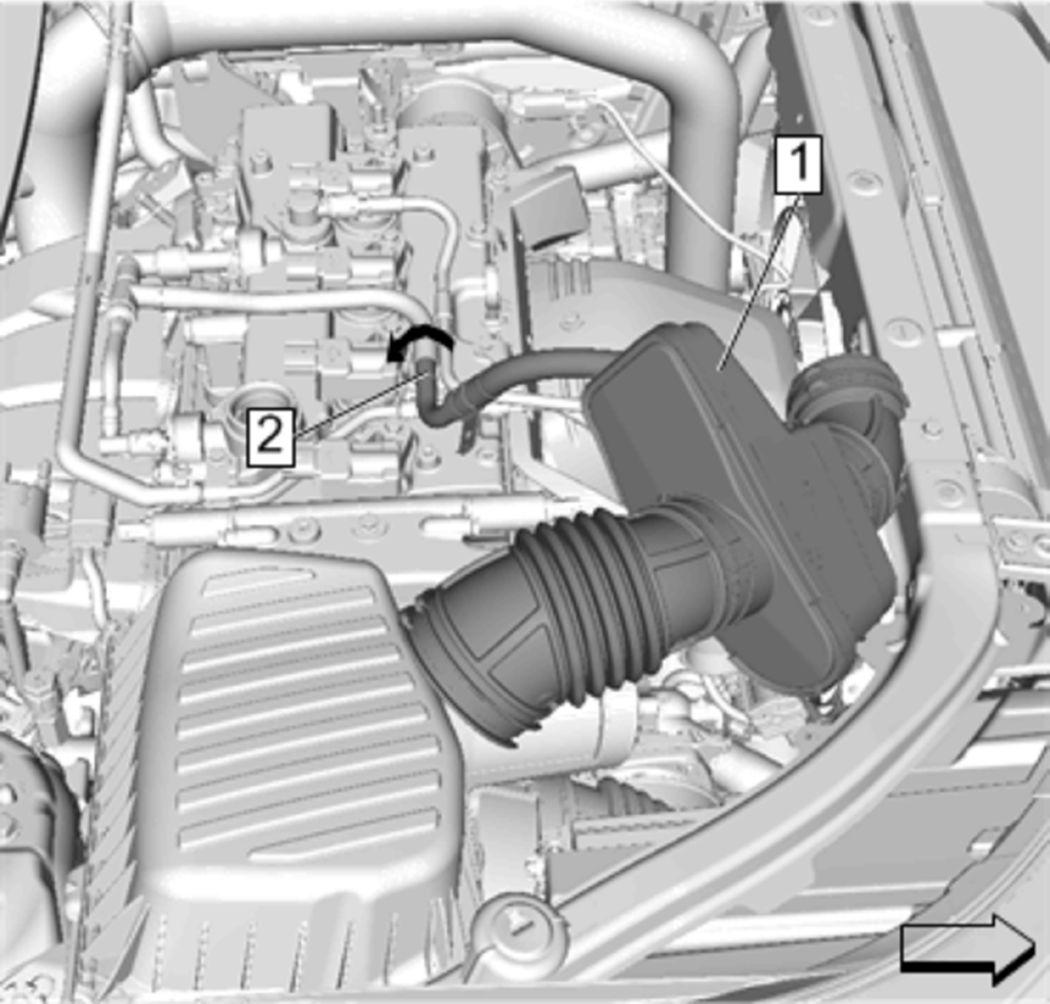

Fig 4: Air Cleaner Outlet Duct And PCV Tube's Pivot Joint

Courtesy of GENERAL MOTORS COMPANY

NOTE:

The PCV tube's connections are tamperproof and cannot be disconnected.

Rotate the air cleaner outlet duct (1) at the PCV tube's pivot joint (2).

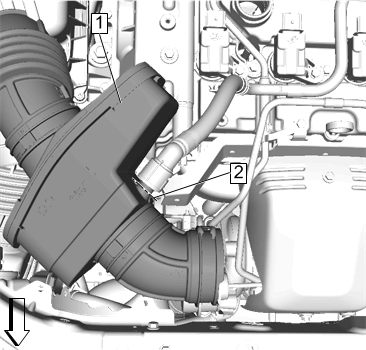

Fig 5: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Only when replacing the air cleaner outlet duct (1) with NEW can the air cleaner outlet duct nipple be cut. Use a suitable tool to cut the air cleaner outlet duct nipple marked by the dashed line (2). Remove air cleaner outlet duct from vehicle and discard.

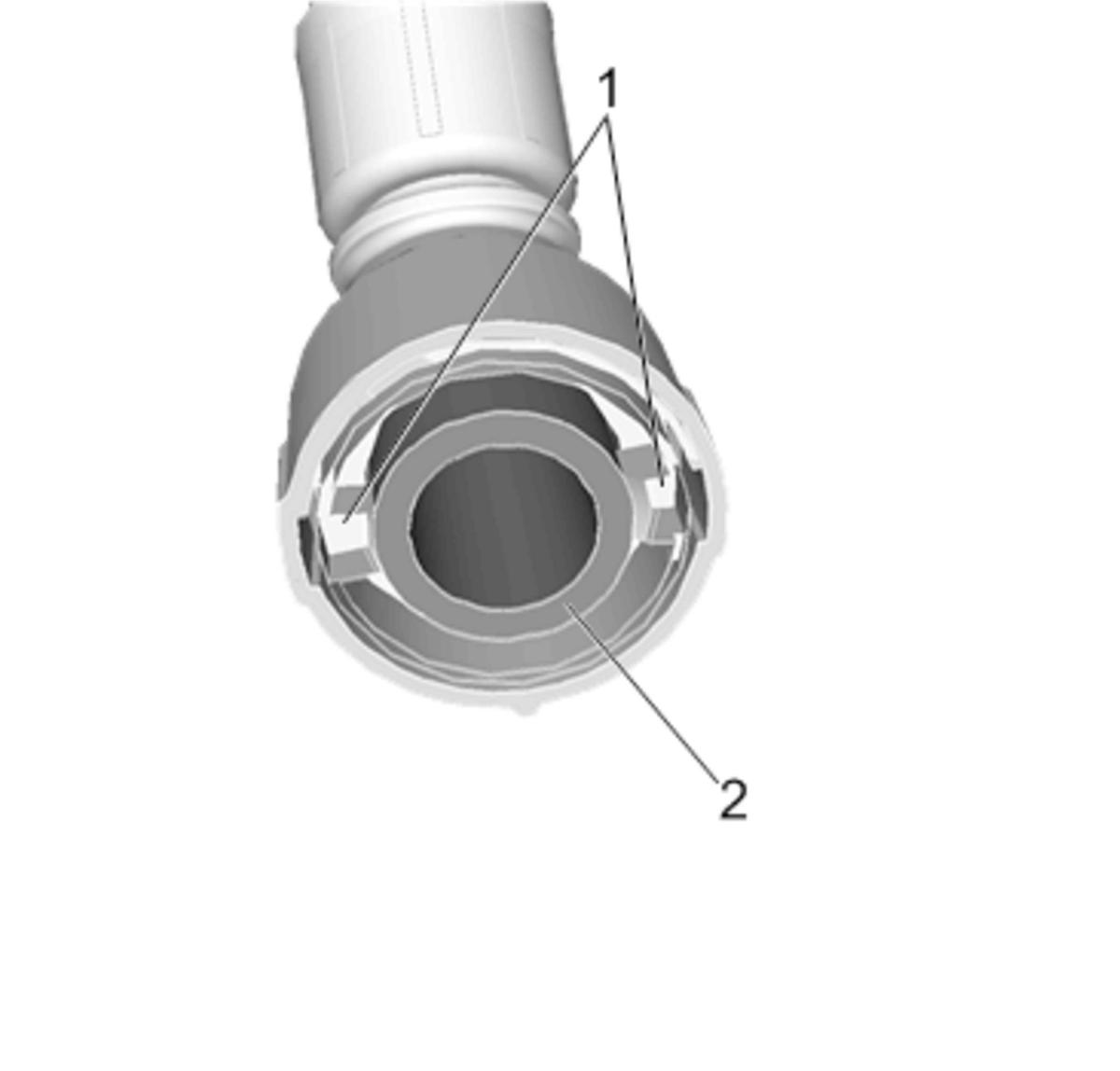

Fig 6: PCV Valve Tangs And PCV Tube

Courtesy of GENERAL MOTORS COMPANY

Using suitable tools, release the PCV valve tangs (1) while pulling the remaining PCV tube (2) from the PCV hose and discard.
