Installation Procedure

WARNING: This page is about a different variant/trim than selected.

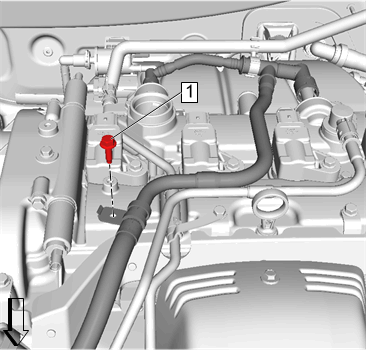

    Fig 1: Positive Crankcase Ventilation Tube Bolt
    GM4915675Courtesy of GENERAL MOTORS COMPANY
  1. Reposition PVC tube.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Positive Crankcase Ventilation Tube Bolt (1) - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Camshaft Cover to Air Inlet)

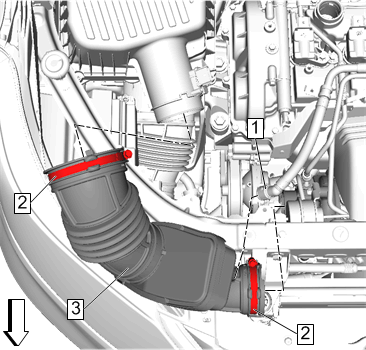

    3. Fig 2: Air Cleaner Outlet Duct
    GM4915680Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.

  3. Install Air Cleaner Outlet Duct (3).
  4. Install Air Cleaner Outlet Duct Clamp (2) and tighten [2x] 3.5 N.m (31 lb in)
  5. Connect Positive Crankcase Ventilation Tube (1) @ Air Cleaner Outlet Duct (3).
  6. Install Intake Manifold Cover - Intake Manifold Cover Replacement
