Drive Belt Tensioner Replacement
WARNING: This page is about a different variant/trim than selected.

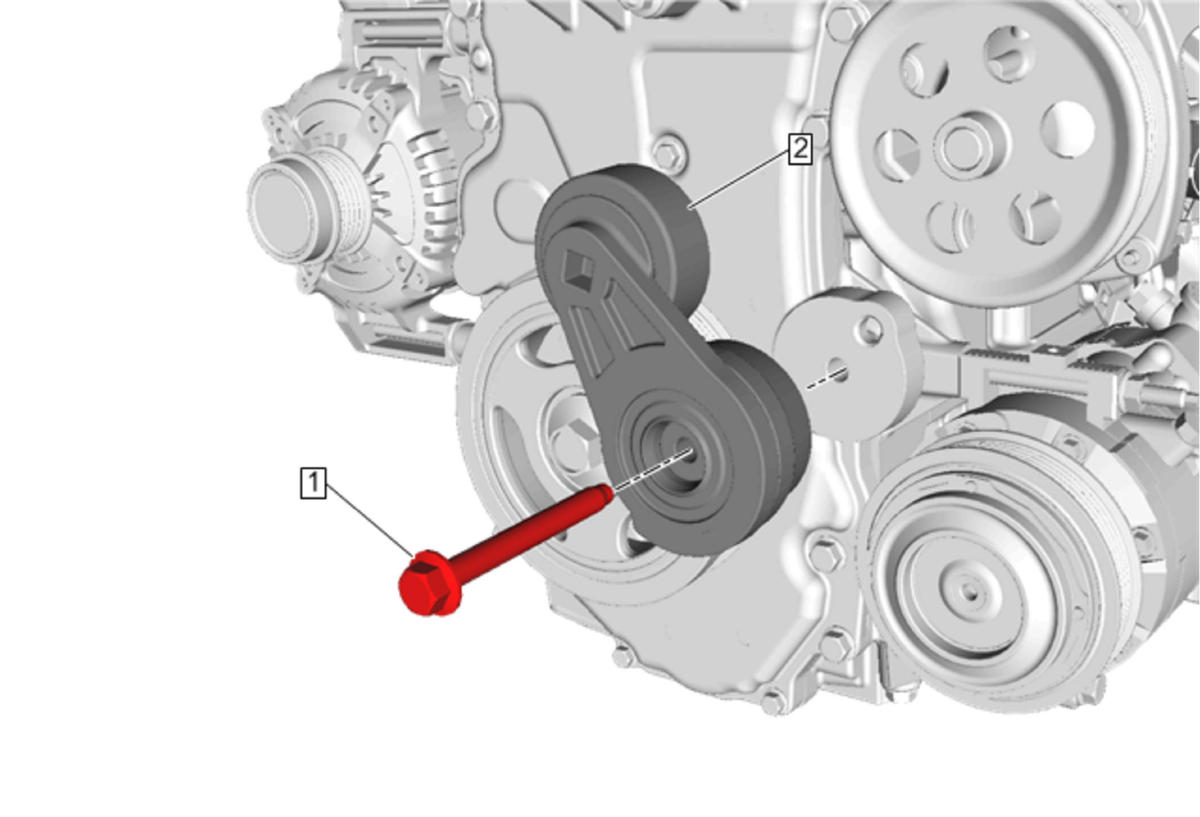

| Callout | Component Name |
|---|---|
| Preliminary Procedures Drive Belt Replacement |
|
| 1 | Drive Belt Tensioner Fastener
CAUTION:
Refer to Fastener Caution . tighten 58 N.m (43 lb ft) |
| 2 | Drive Belt Tensioner |
