Drive Belt Replacement

WARNING: This page is about a different variant/trim than selected.

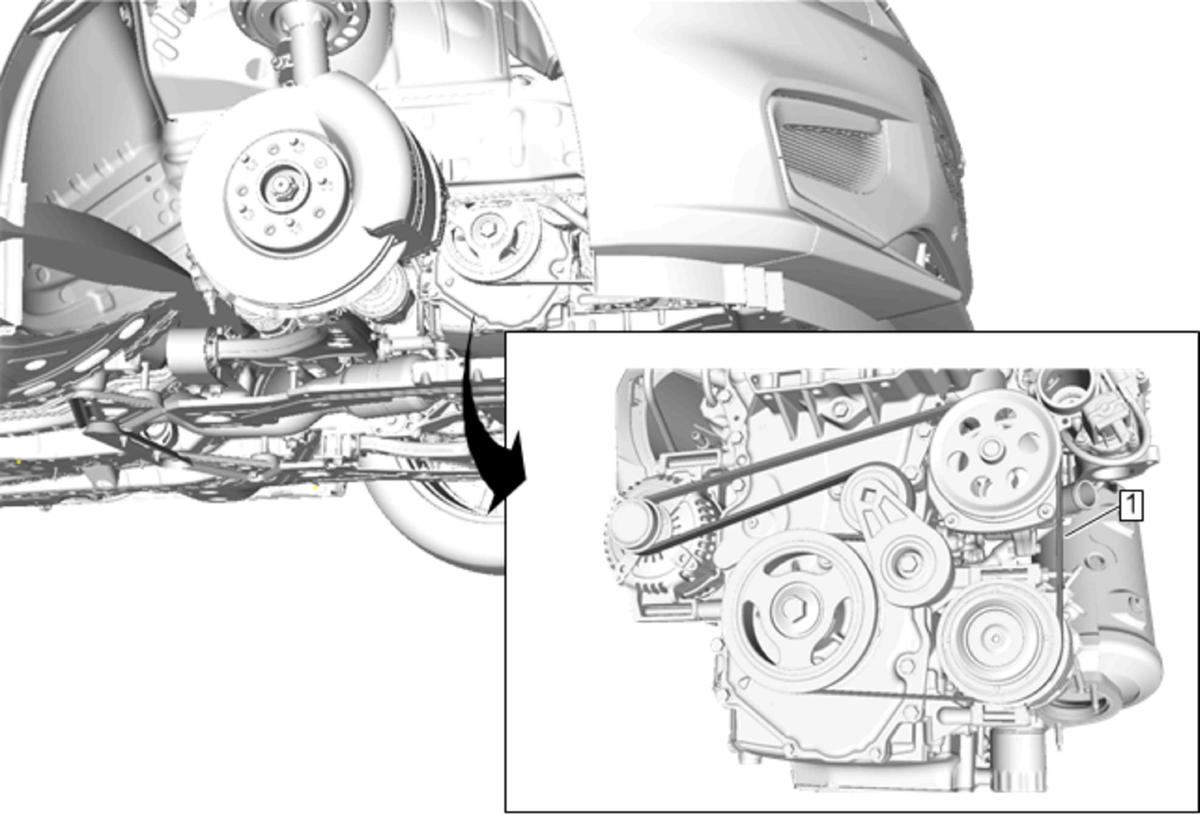

Fig 1: Drive Belt Routing
GM4237893Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Wheelhouse Liner Replacement - Right Side (Equinox)Front Wheelhouse Liner Replacement - Right Side (Terrain)
1 Drive Belt

Procedure

  1. Slowly release the tension on the drive belt tensioner.
  2. Remove the drive belt.
