Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Turbocharger Oil Feed Pipe, Hollow Screw And Gaskets
    GM4377188Courtesy of GENERAL MOTORS COMPANY
  1. Install Turbocharger Oil Feed Pipe (1)
  2. Install NEW gaskets. (3) (Qty: 2)
  3. Install Turbocharger Oil Feed Pipe Hollow Screw (2) - Do NOT tighten.

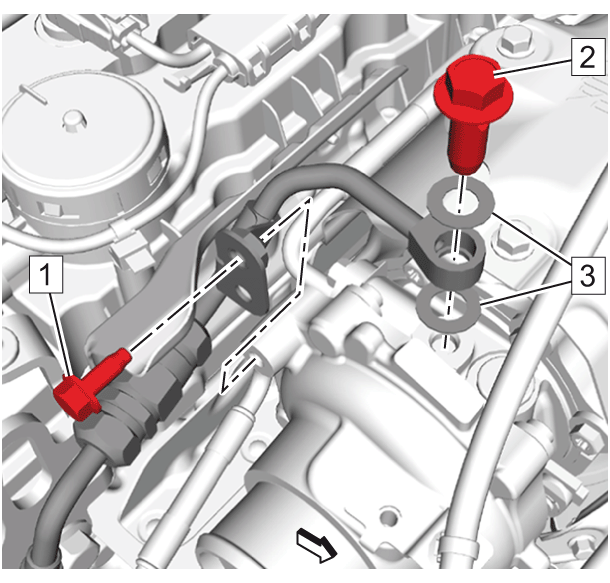

    4. Fig 2: Turbocharger Oil Feed Pipe Hollow Screw, Bracket Bolt And Gaskets
    GM4377187Courtesy of GENERAL MOTORS COMPANY
  4. Install NEW gaskets. (3) (Qty: 2)
    5. CAUTION:

    Refer to Fastener Caution

  5. Install and tighten Turbocharger Oil Feed Pipe Hollow Screw (2) to 25 N.m (18 lb ft)
    6. Fig 3: Turbocharger Oil Feed Pipe, Hollow Screw And Gaskets
    GM4377188Courtesy of GENERAL MOTORS COMPANY
  6. Tighten Turbocharger Oil Feed Pipe Hollow Screw (2) to 25 N.m (18 lb ft)
    7. Fig 4: Turbocharger Oil Feed Pipe Hollow Screw, Bracket Bolt And Gaskets
    GM4377187Courtesy of GENERAL MOTORS COMPANY
  7. Install and tighten Turbocharger Oil Feed Pipe Bracket Bolt (1) to 10 N.m (89 lb in)

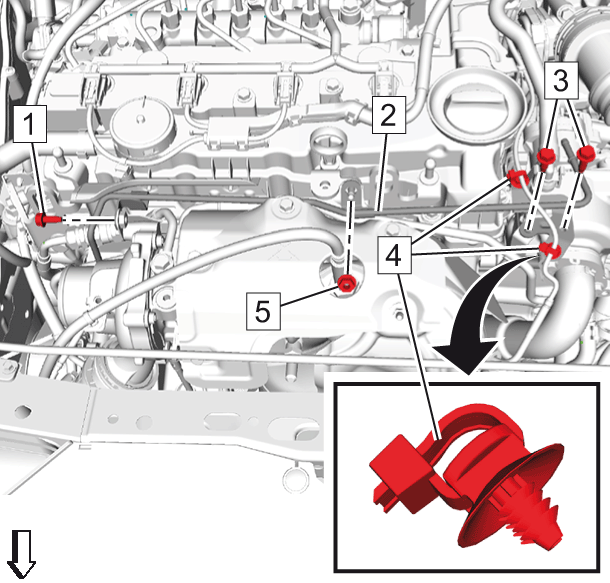

    8. Fig 5: Turbocharger Wastegate Actuator Pipe, Bolts, Nut And Clips
    GM4377186Courtesy of GENERAL MOTORS COMPANY
  8. Install Turbocharger Wastegate Actuator Pipe (2)
  9. Install Wiring Harness Clips (4) (Qty: 2)
  10. Install the turbocharger wastegate actuator pipe nut (5) and tighten to 10 N.m (89 lb in)
  11. Install and tighten Turbocharger Wastegate Actuator Pipe Bolts (1, 3) (Qty: 3) to 10 N.m (89 lb in)
    12. Fig 6: Turbocharger Wastegate Actuator Pipe And Power Brake Booster Inlet Hose Connector Fitting
    GM4276269Courtesy of GENERAL MOTORS COMPANY
  12. Install Turbocharger Wastegate Actuator Pipe (1) @ Power Brake Booster Inlet Hose Connector Fitting (2)

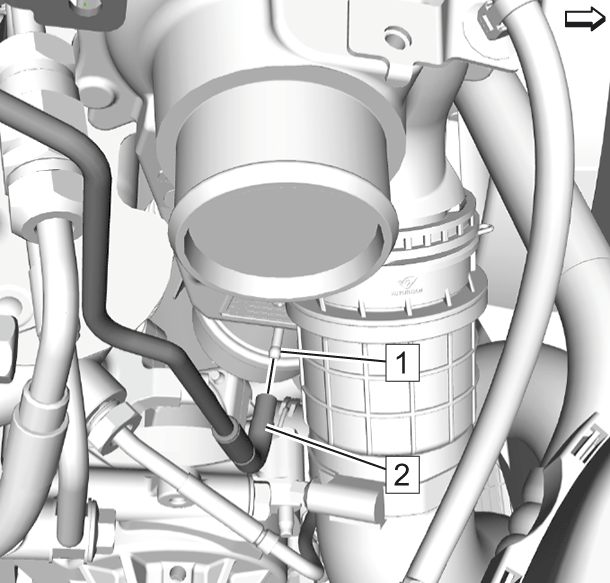

    13. Fig 7: Turbocharger Wastegate Actuator Pipe And Turbocharger
    GM4377185Courtesy of GENERAL MOTORS COMPANY
  13. Install Turbocharger Wastegate Actuator Pipe (2) @ Turbocharger (1)
  14. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
  15. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
