Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Assemble the intake manifold. Refer to Intake Manifold Assemble
    2. Fig 1: Intake Manifold, Bolts And Gasket
    GM4210726Courtesy of GENERAL MOTORS COMPANY
  2. Install a NEW intake manifold gasket. (3)
  3. Install Intake Manifold (2)
  4. Install Intake Manifold Bolts (1, 4) (Qty: 9)
    5. Fig 2: Intake Manifold Bolt Tightening Sequence
    GM4210724Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  5. Tighten Intake Manifold Bolts in sequence (Qty: 9) to 12 N.m (106 lb in)
    6. Fig 3: Fuel Rail Fuel Pressure Sensor Wire Bracket, Fuel Return Pipe Bracket And Bolts
    GM4199262Courtesy of GENERAL MOTORS COMPANY
  6. Install Fuel Injection Fuel Return Pipe Bracket (2)
  7. Install and tighten Fuel Injection Fuel Return Pipe Bracket Bolts (3) (Qty: 2) to 9 N.m (80 lb in)
  8. Install Fuel Injection Fuel Rail Fuel Pressure Sensor Wire Bracket (1)
  9. Install and tighten Fuel Injection Fuel Rail Fuel Pressure Sensor Wire Bracket Bolts (4) (Qty: 2) to 9 N.m (80 lb in)
    10. Fig 4: Intake Manifold Brace And Bolts
    GM4199261Courtesy of GENERAL MOTORS COMPANY
  10. Install Intake Manifold Brace (1)
  11. Install and tighten Intake Manifold Brace Bolts (2) (Qty: 4) to 10 N.m (89 lb in)
    12. Fig 5: Exhaust Gas Recirculation Cooler Outlet Pipe, Bolts And Gaskets
    GM4377020Courtesy of GENERAL MOTORS COMPANY
  12. Install NEW gaskets. (2, 3) (Qty: 2)
  13. Install Exhaust Gas Recirculation Cooler Outlet Pipe (5)
  14. Install and tighten Exhaust Gas Recirculation Cooler Outlet Pipe Bolts (1, 4) (Qty: 4) to 10 N.m (89 lb in)
    15. Fig 6: Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector
    GM4377024Courtesy of GENERAL MOTORS COMPANY
  15. Connect Exhaust Gas Recirculation Cooler Temperature Sensor Electrical Connector (1)

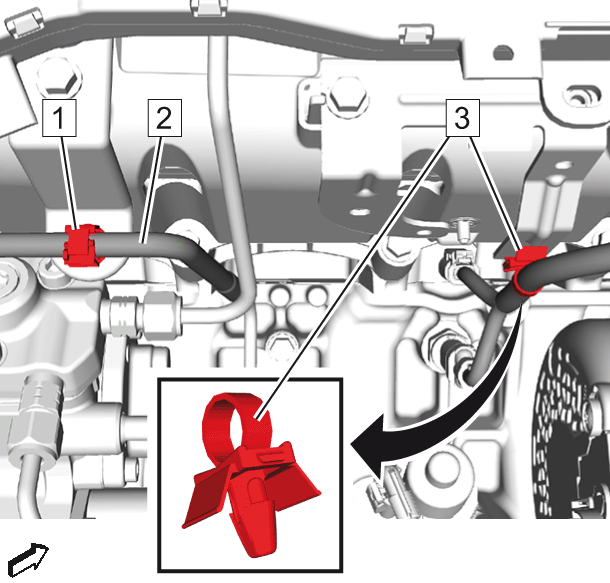

    16. Fig 7: Charge Air Bypass Valve Vacuum Hose, Retainer And Clip
    GM4377133Courtesy of GENERAL MOTORS COMPANY
  16. Install Engine Wiring Harness Clip (3)
  17. Install the charge air bypass valve vacuum hose (2) to the retainer (1).

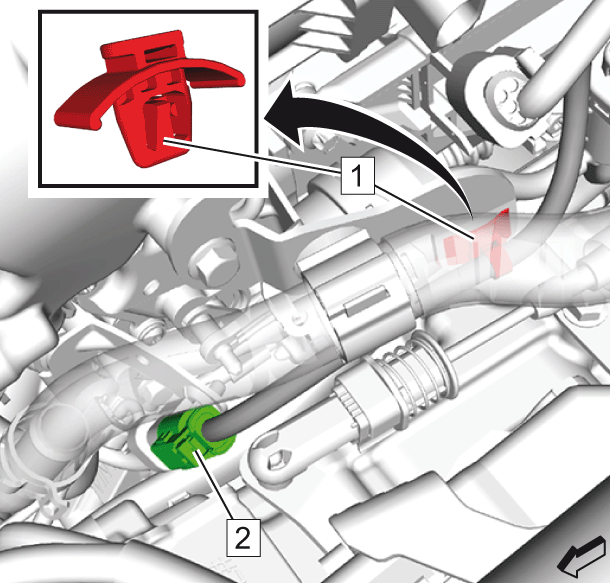

    18. Fig 8: Exhaust Temperature Sensor Electrical Connector And Retainer
    GM4377134Courtesy of GENERAL MOTORS COMPANY
  18. Install Engine Wiring Harness Retainer (1)
  19. Connect Exhaust Temperature Sensor Electrical Connector (2)
    20. Fig 9: Electrical Connectors, Engine Wiring Harness And Clip
    GM4377019Courtesy of GENERAL MOTORS COMPANY
  20. Reposition Engine Wiring Harness (2)
  21. Connect the electrical connector:
    1. Exhaust Gas Recirculation Valve (6)
    2. Exhaust Gas Recirculation Vacuum Regulator Solenoid Valve (5)
    3. Exhaust Pressure Differential Sensor (4)
    4. Throttle Body (1)
  22. Install Engine Wiring Harness Clip (3)
    23. Fig 10: Charge Air Cooler Outlet Air Hose, Retainer Spring And Throttle Body
    GM4199254Courtesy of GENERAL MOTORS COMPANY
  23. Connect Charge Air Cooler Outlet Air Hose (3) @ Throttle Body Assembly (2)
  24. Lock Charge Air Cooler Outlet Air Hose Retainer Spring (1)
    25. Fig 11: Power Brake Booster Vacuum Pipe
    GM4199259Courtesy of GENERAL MOTORS COMPANY
  25. Connect Power Brake Booster Vacuum Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service

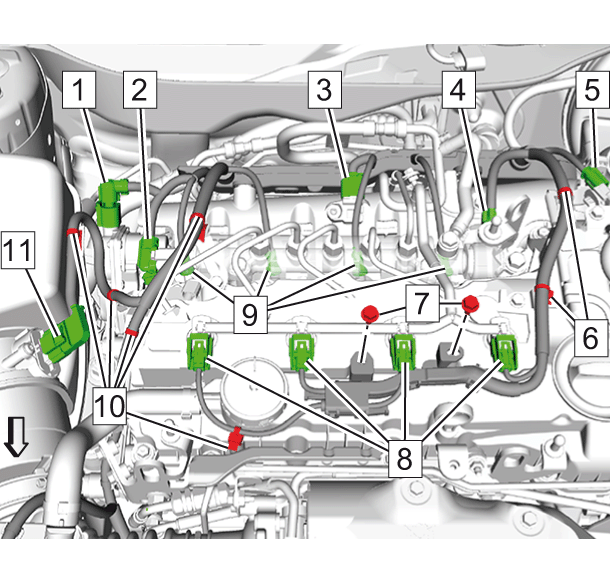

    26. Fig 12: Electrical Connectors, Bolts And Retainers
    GM4377132Courtesy of GENERAL MOTORS COMPANY
  26. Connect the electrical connector:
    1. Intake Manifold Runner Control Valve Actuator (1)
    2. Fuel Rail Pressure Sensor (2)
    3. Intake Air Pressure and Temperature Sensor (3)
    4. Fuel Pressure Regulator (4)
    5. Exhaust Temperature Sensor - Position 1 (5)
    6. Fuel Injector (8) (Qty: 4)
    7. Mass Airflow Sensor (11)
    8. Camshaft Position Sensor (12)
  27. Install and tighten Engine Wiring Harness Conduit Bolts (7) (Qty: 2) to 9 N.m (80 lb in)
  28. Install Engine Wiring Harness Retainers (6, 10) (Qty: 7)
    29. Fig 13: Engine Wiring Harness Conduit Bolts
    GM4199253Courtesy of GENERAL MOTORS COMPANY
  29. Install and tighten Engine Wiring Harness Conduit Bolts (1) (Qty: 3) to 9 N.m (80 lb in)
  30. Install Diesel Fuel Separator. Refer to Diesel Fuel Separator Replacement
  31. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
  32. Check the fuel system for leaks. Refer to Fuel Leak Diagnosis
