Intake Manifold Assemble
WARNING: This page is about a different variant/trim than selected.

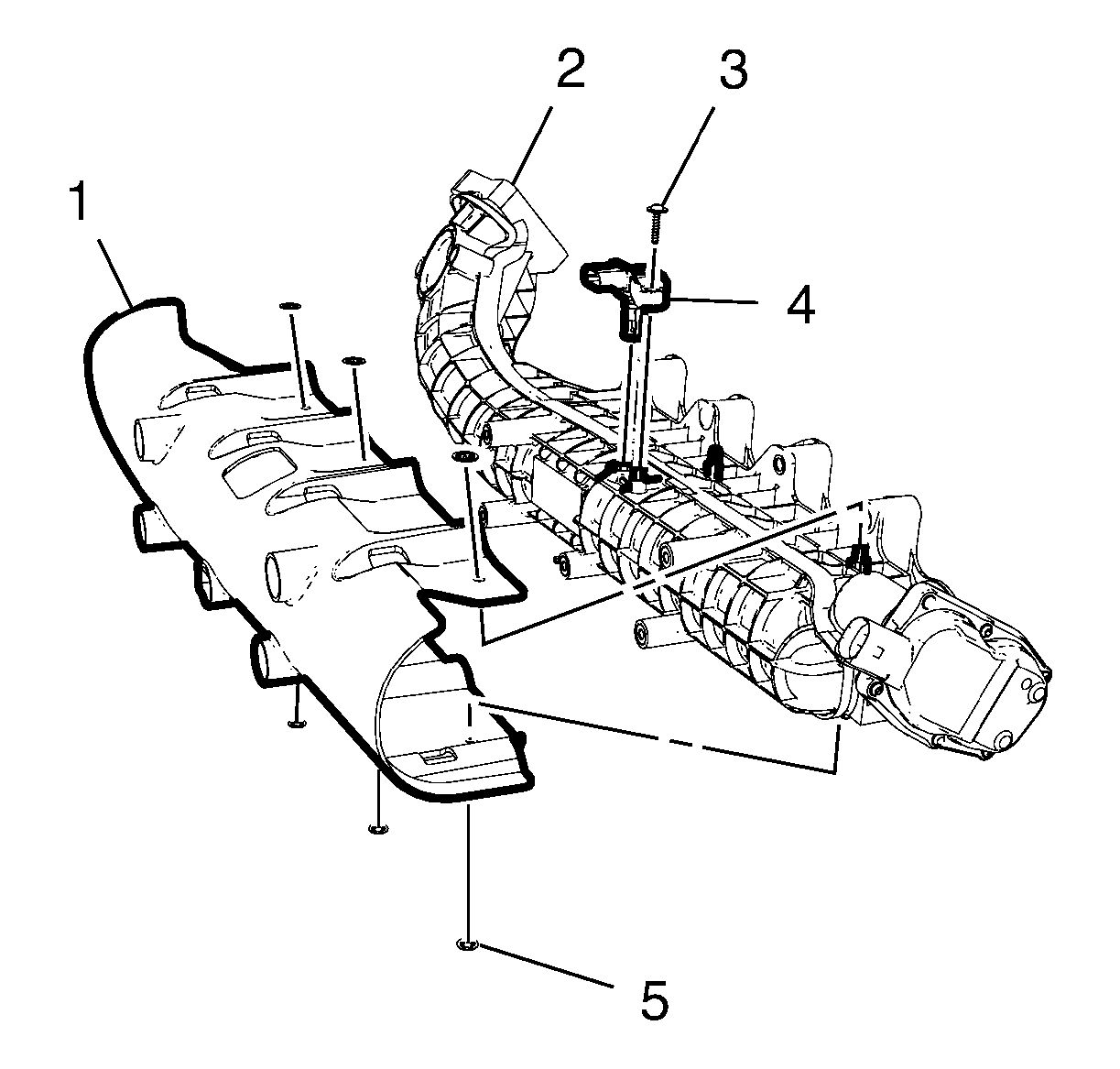

- Install the intake manifold cover (1) to the intake manifold.
- Install 6 intake manifold washers (5).
- Install the intake air pressure and temperature sensor (4).
- Install the intake air pressure and temperature sensor bolt (3) and tighten to 1.6 N.m (14 lb in).
- Install Throttle Body Assembly @ Intake Manifold (2). Refer to Throttle Body Assembly Replacement
CAUTION:
Refer to Fastener Caution .
