Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Engine Mount And Bolts
    GM4847172Courtesy of GENERAL MOTORS COMPANY
  1. Install Engine Mount (4)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install and tighten Engine Mount Bolts (1) (Qty: 2) to 100 N.m (74 lb ft)
    3. CAUTION:

    Refer to Torque-to-Yield Fastener Caution

  3. Install NEW Engine Mount Engine Side Bolt (2, 3)
  4. Tighten Engine Mount Engine Side Bolt (2)
    1. First Pass: 35 N.m (26 lb ft)
  5. Tighten Engine Mount Engine Side Bolt (3)
    1. First Pass: 35 N.m (26 lb ft)
  6. Tighten Engine Mount Engine Side Bolt (2, 3)
    1. Second Pass: 100 N.m (74 lb ft)
    2. Final Pass: 60 - 75 degrees - EN-45059  Angle Meter

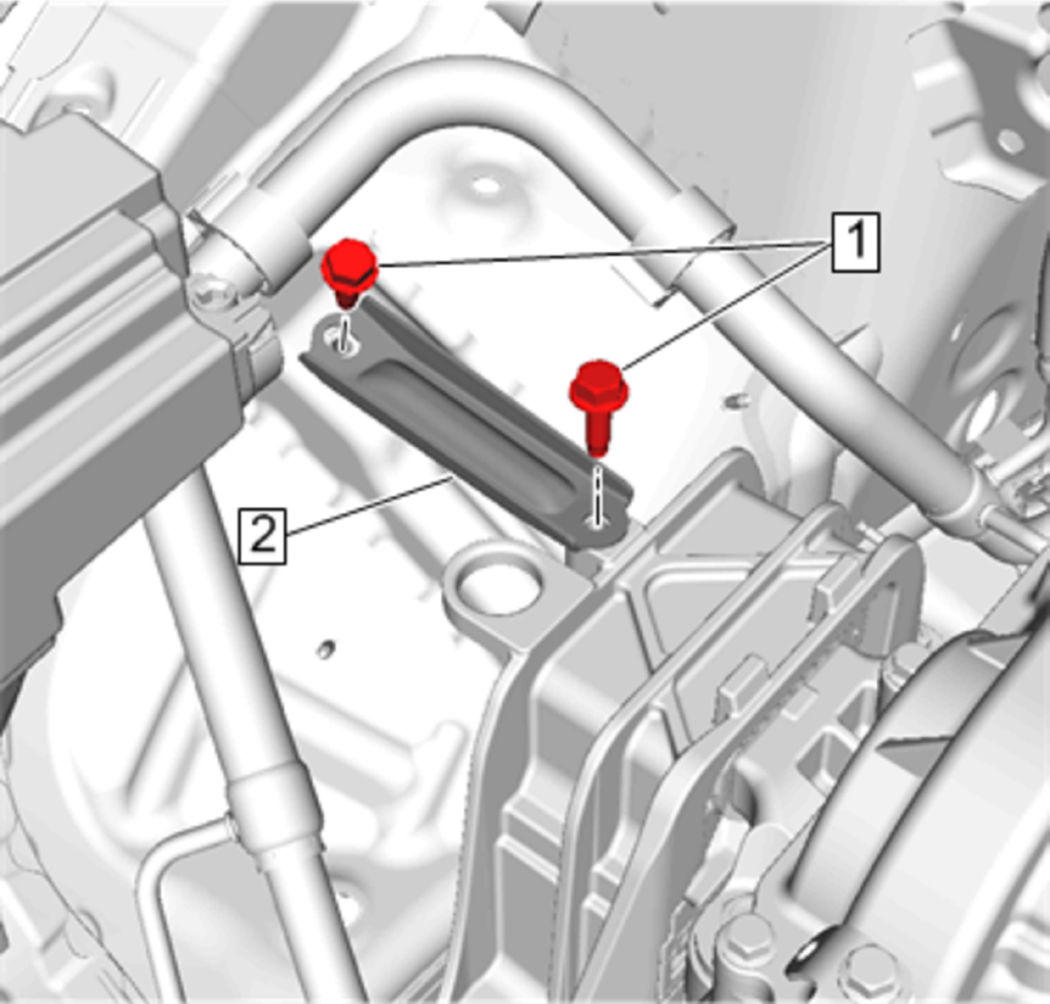

    7. Fig 2: Engine Mount Brace And Bolts
    GM4665470Courtesy of GENERAL MOTORS COMPANY
  7. Install Engine Mount Brace (2)
  8. Install and tighten Engine Mount Brace Bolts (1) (Qty: 2) to 22 N.m (16 lb ft)
  9. Remove Engine Support Fixture. Refer to Engine Support Fixture
  10. Install Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement
  11. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
