Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Turbocharger Wastegate Actuator Pipe And Power Brake Booster Inlet Hose Connector Fitting
    GM4197219Courtesy of GENERAL MOTORS COMPANY
  1. Install Turbocharger Wastegate Actuator Pipe (1) @ Vehicle
  2. Connect Turbocharger Wastegate Actuator Pipe (1) @ Power Brake Booster Inlet Hose Connector Fitting (2)

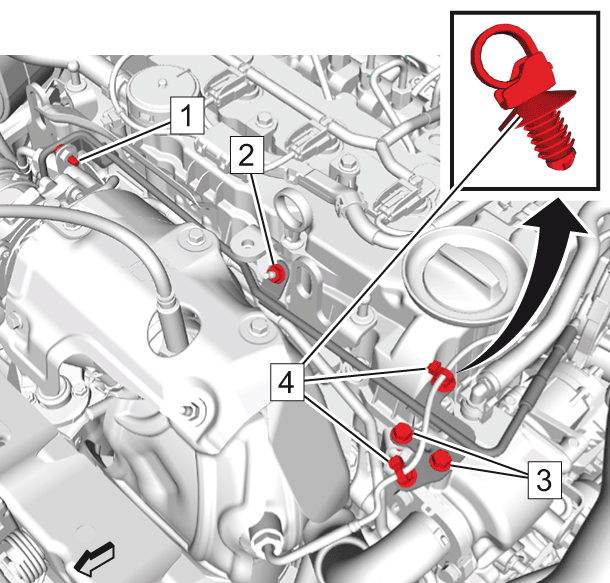

    3. Fig 2: Turbocharger Wastegate Actuator Pipe Bolts, Nut And Clips
    GM4421811Courtesy of GENERAL MOTORS COMPANY
  3. Install the turbocharger wastegate actuator pipe nut (2).
    4. CAUTION:

    Refer to Fastener Caution

  4. Install and tighten Turbocharger Wastegate Actuator Pipe Bolts (1, 3) (Qty: 3) to 10 N.m (89 lb in)
  5. Tighten the turbocharger wastegate actuator pipe nut (2) to 10 N.m (89 lb in).
  6. Install Wiring Harness Clips (4) (Qty: 2)
    7. Fig 3: Turbocharger Wastegate Actuator Pipe And Turbocharger
    GM4197217Courtesy of GENERAL MOTORS COMPANY
  7. Install Turbocharger Wastegate Actuator Pipe (2) @ Turbocharger (1)
  8. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
  9. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
