Fuel Return Pipe Replacement (Cooler To Front Pipe AWD)

WARNING: This page is about a different variant/trim than selected.

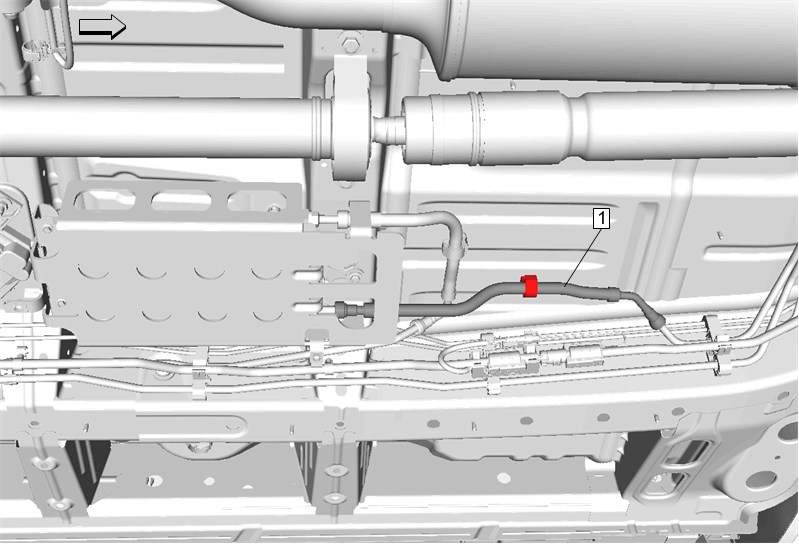

Fig 1: Fuel Return Pipe (Cooler To Front Pipe AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove Underbody Rear Air Deflector. Refer to Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)
1	Fuel Return Pipe Procedure Disconnect the fuel return pipe and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service Pressurize fuel system and check for fuel leaks.

Callout

Component Name

WARNING:

WARNING:

Fuel Return Pipe

Procedure

Disconnect the fuel return pipe and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service
Pressurize fuel system and check for fuel leaks.
