Fuel Return Pipe Replacement (Chassis AWD)

WARNING: This page is about a different variant/trim than selected.

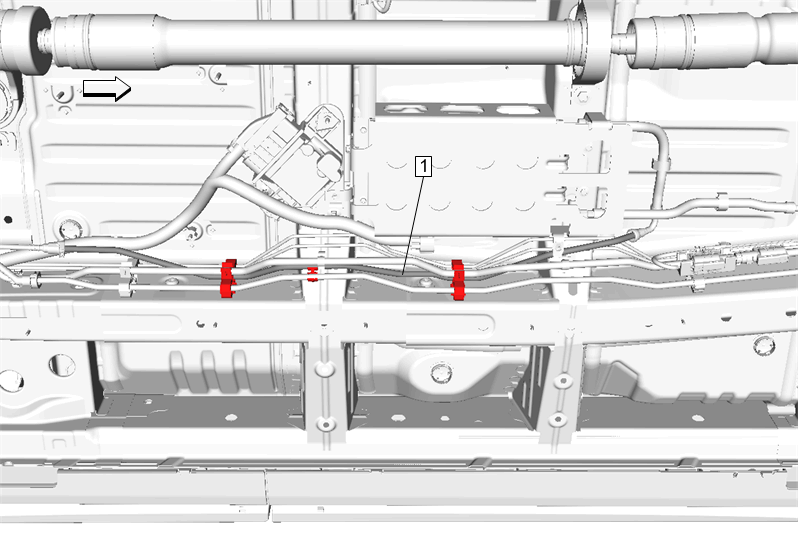

Fig 1: Fuel Return Pipe (Chassis AWD)

GM4694839

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Remove Underbody Rear Air Deflector. Refer to Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)

1

Fuel Return Pipe

Procedure

Disconnect the fuel return pipe and remove from retainers. Refer to Metal Collar Quick Connect Fitting Service , and Plastic Collar Quick Connect Fitting Service
Pressurize fuel system and check for fuel leaks.
