Fuel Pump Power Control Module Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

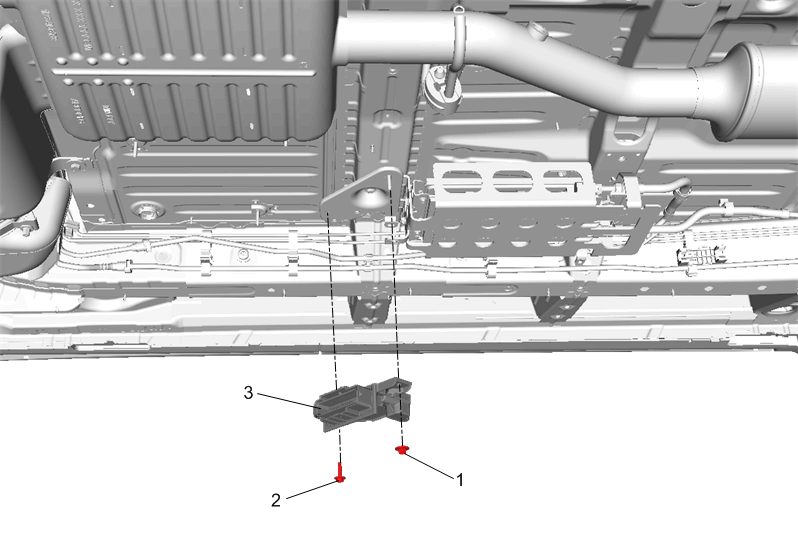

Fig 1: Fuel Pump Power Control Module (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure {If equipped} Remove Underbody Rear Air Deflector. Refer to Underbody Rear Air Deflector Replacement (Front Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)
1	Fuel Pump Power Control Module Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Bolt Tighten 9 N.m (80 lb in)
3	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References
