Fuel Pump Power Control Module Bracket Replacement (FWD)
WARNING: This page is about a different variant/trim than selected.

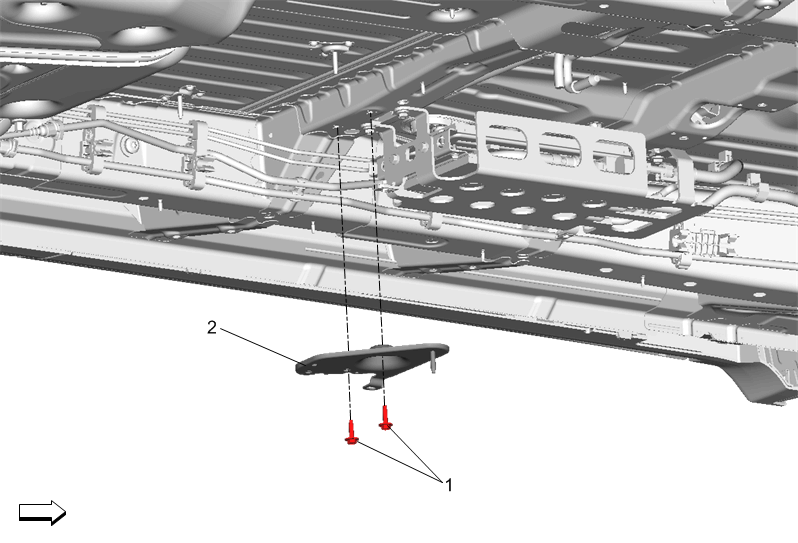

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Fuel Pump Power Control Module. Refer to Fuel Pump Power Control Module Replacement (FWD) |
|
| 1 | Fuel Pump Power Control Module Bracket Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Fuel Pump Power Control Module Bracket |
