Installation Procedure

WARNING: This page is about a different variant/trim than selected.

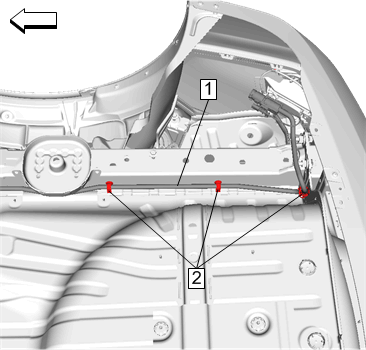

Fig 1: Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe And Retainers

Courtesy of GENERAL MOTORS COMPANY

Install Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (1) @ Retainers (2) (Qty: 3)

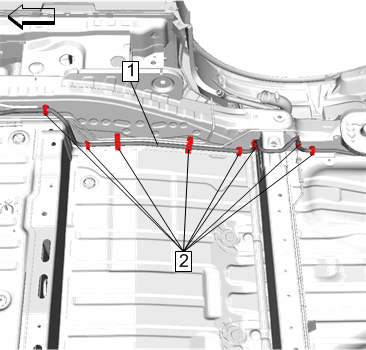

Fig 2: Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe And Retainers

Courtesy of GENERAL MOTORS COMPANY

Install Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (1) @ Retainers (2) (Qty: 8)

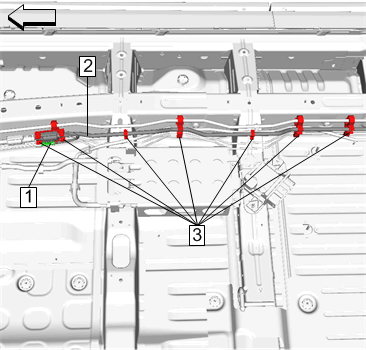

Fig 3: Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe, Electrical Connector And Retainers

Courtesy of GENERAL MOTORS COMPANY

Install Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (2) @ Retainers (3) (Qty: 7)
Connect Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe (2). Refer to Plastic Collar Quick Connect Fitting Service
Connect Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe Electrical Connector (1)
Install Emission Reduction Fluid Tank. Refer to Emission Reduction Fluid Tank Replacement
Install Fuel Tank. Refer to Fuel Tank Replacement (AWD)
{If equipped} Install Underbody Rear Air Deflector. Refer to Underbody Rear Air Deflector Replacement (All Wheel Drive)Underbody Rear Air Deflector Replacement (Diesel)
