Installation Procedure

WARNING: This page is about a different variant/trim than selected.

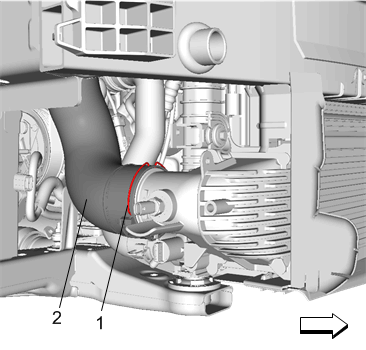

    Fig 1: Charge Air Cooler Inlet Air Tube And Retainer Spring
    GM4695619Courtesy of GENERAL MOTORS COMPANY
  1. Install Charge Air Cooler Inlet Air Tube (2)
  2. Engage Retainer Spring (1)
  3. Install Underbody Front Air Deflector. Refer to Underbody Front Air Deflector Replacement (Equinox)Underbody Front Air Deflector Replacement (Terrain)
    4. Fig 2: Charge Air Cooler Inlet Air Tube And Retainer Spring
    GM4695617Courtesy of GENERAL MOTORS COMPANY
  4. Install Charge Air Cooler Inlet Air Tube (2)
  5. Engage Retainer Spring (1)
  6. Install Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
