Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

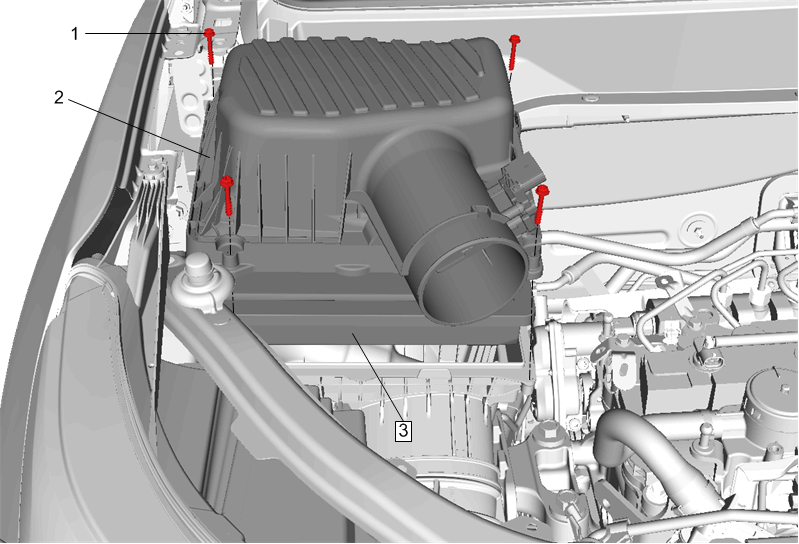

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement Disconnect the electrical connector. Remove wiring harness from air cleaner upper housing.
1	Air Cleaner Upper Housing Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Air Cleaner Upper Housing
3	Air Cleaner Element
