Headlamp Bulb Replacement - Right Side (Chevrolet With T4A And LH7)

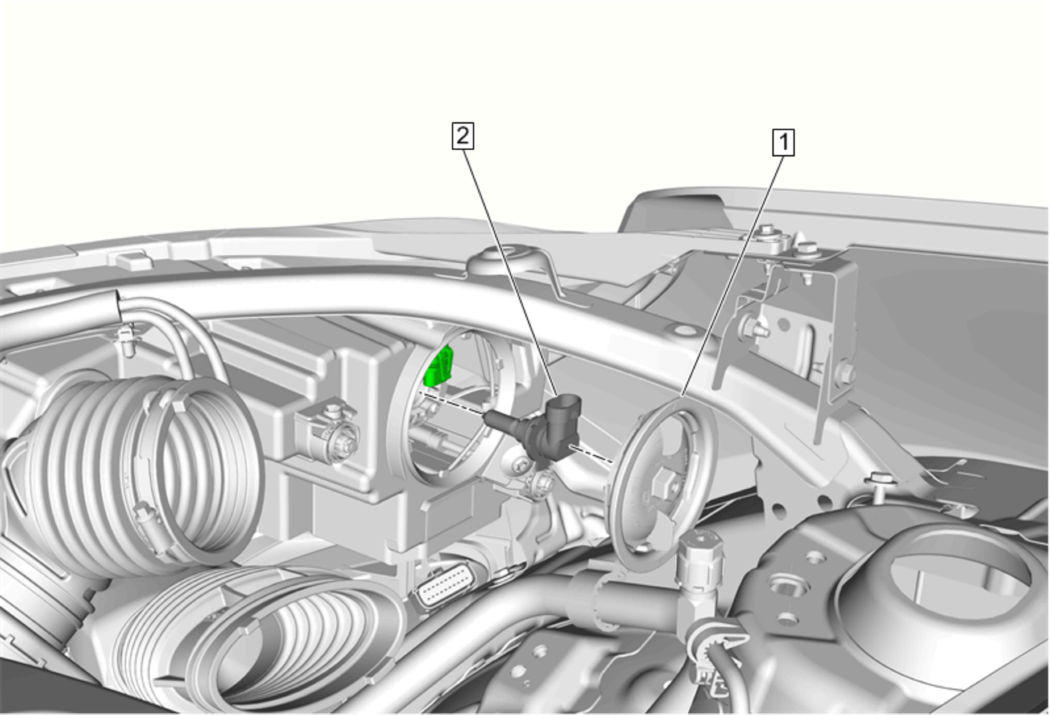

Fig 1: Headlamp Bulb - Right Side (Chevrolet With T4A And LH7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Assembly Replacement
1	Headlamp Bulb Access Cover Procedure Rotate the bulb access cover counterclockwise to remove it from the lamp housing.
2	Headlamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector. Rotate the bulb socket counterclockwise to remove it from the lamp housing.

Callout

Component Name

Headlamp Bulb Access Cover
Procedure
Rotate the bulb access cover counterclockwise to remove it from the lamp housing.

Headlamp Bulb

WARNING:

Procedure
