Roof Rail Rear Seat Position Reading And Courtesy Lamp Replacement

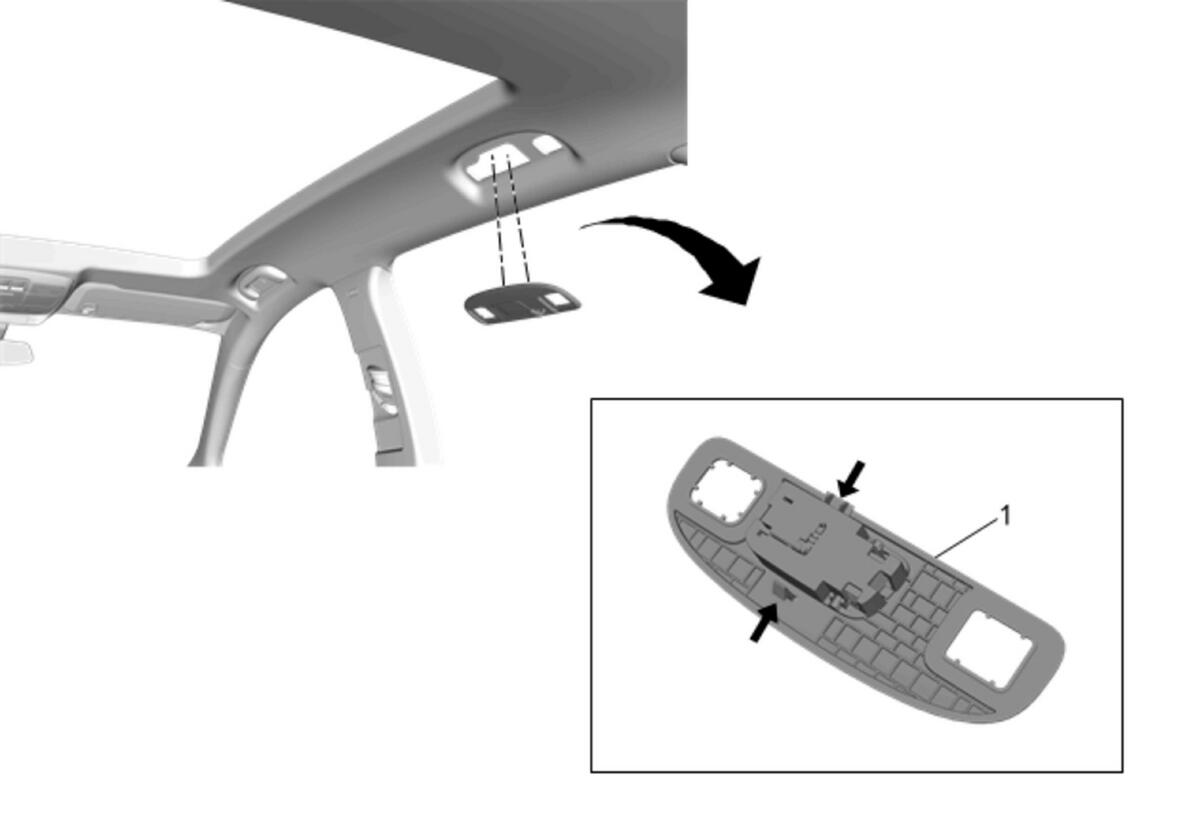

Fig 1: Roof Rail Rear Seat Position Reading and Courtesy Lamp
GM3926969Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Roof Rail Assist Handle Replacement (Front, Equinox)Roof Rail Assist Handle Replacement (Rear)Roof Rail Assist Handle Replacement (Front, Terrain)
1 Roof Rail Rear Seat Position Reading and Courtesy Lamp

Procedure

  1. Use a suitable tool.Unlock the retaining tabs.
  2. Disconnect the electrical connector.
