Roof Rail Assist Handle Replacement (Front, Terrain)

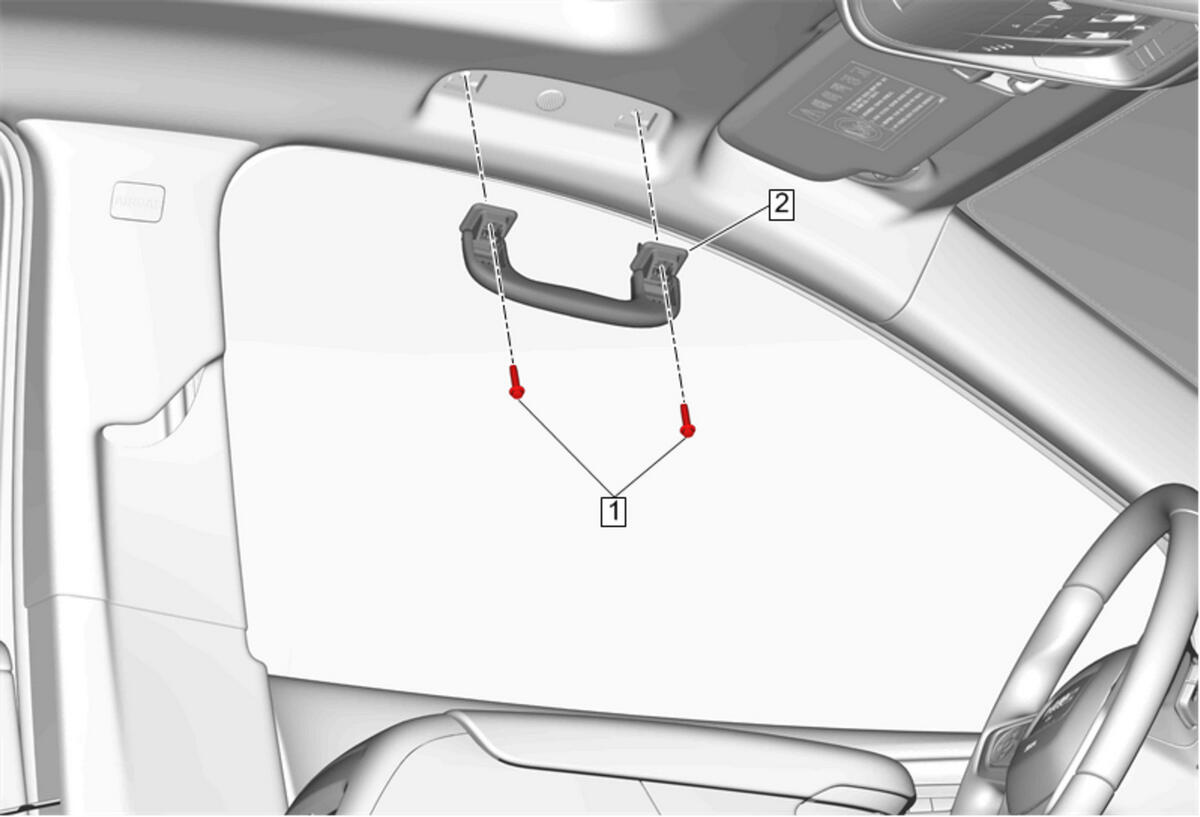

Fig 1: Roof Rail Assist Handle (Front, Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Roof Rail Assist Handle Bolt [2x] CAUTION: Refer to Fastener Caution . Procedure Fold the roof rail assist handle downward and hold. Use a small flat - bladed tool to open the roof rail assist handle covers to access the bolt. Tighten 6 N.m (53 lb in)
2	Roof Rail Assist Handle Procedure Use a flat bladed plastic tool to remove.

Callout

Component Name

Roof Rail Assist Handle Bolt [2x]

CAUTION:

Procedure

Fold the roof rail assist handle downward and hold.
Use a small flat - bladed tool to open the roof rail assist handle covers to access the bolt.

Tighten
6 N.m (53 lb in)

Roof Rail Assist Handle
Procedure
Use a flat bladed plastic tool to remove.
