High Mount Stop Lamp Replacement (GMC)

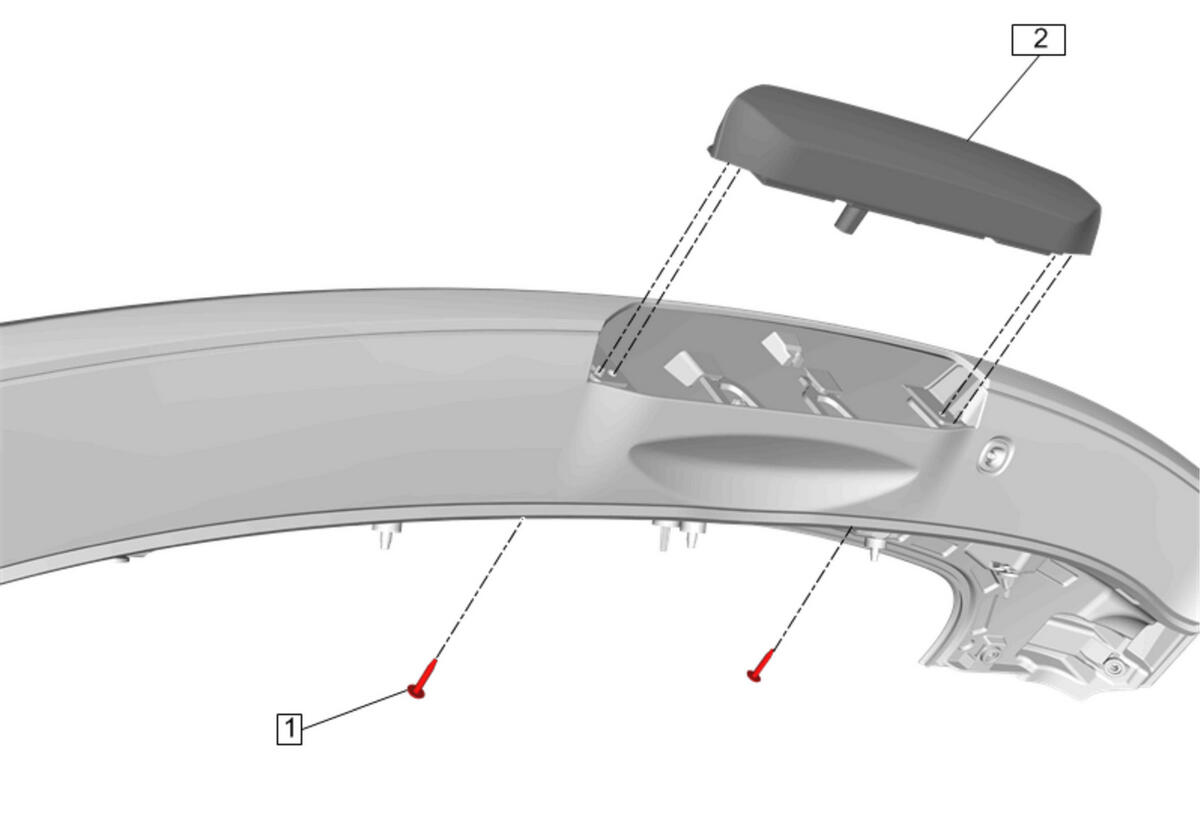

Fig 1: High Mount Stop Lamp (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear End Spoiler Replacement (Terrain)
1	High Mount Stop Lamp Screw [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	High Mount Stop Lamp Procedure  Disconnect the electrical connector.
