Rear End Spoiler Replacement (Terrain)

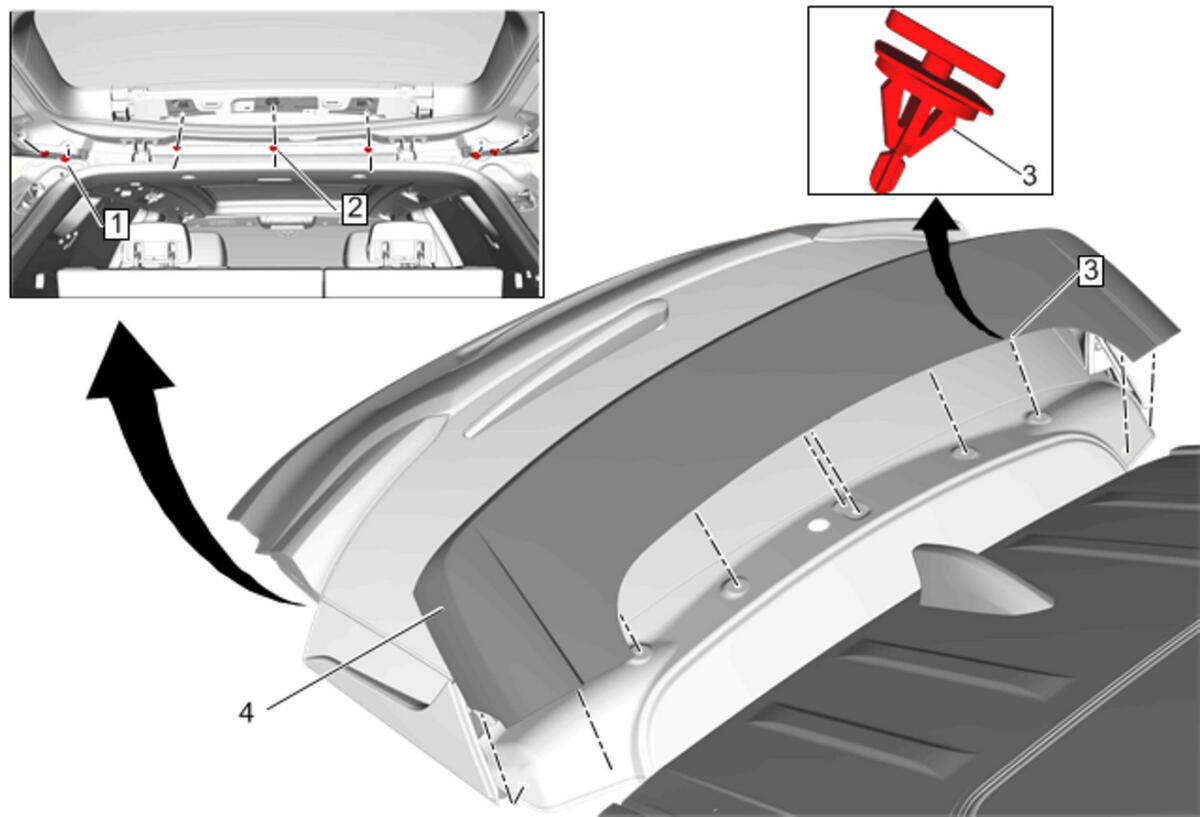

Fig 1: Rear End Spoiler (Terrain)
GM4695928Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Open and support the liftgate.
  2. Liftgate Upper Center Trim Finish Panel Replacement
1 Rear End Spoiler Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Rear End Spoiler Nut (Qty: 3)
Tighten
6 N.m (53 lb in)
3 Rear End Spoiler Retainer (Qty: 2)
4 Rear End Spoiler

Procedure

  1. Using the appropriate tool, release the 2 rear end spoiler retainers.
  2. Disconnect the electrical connector.
  3. Disconnect the rear window washer hose from the rear window washer nozzle.
  4. Transfer components as necessary.
