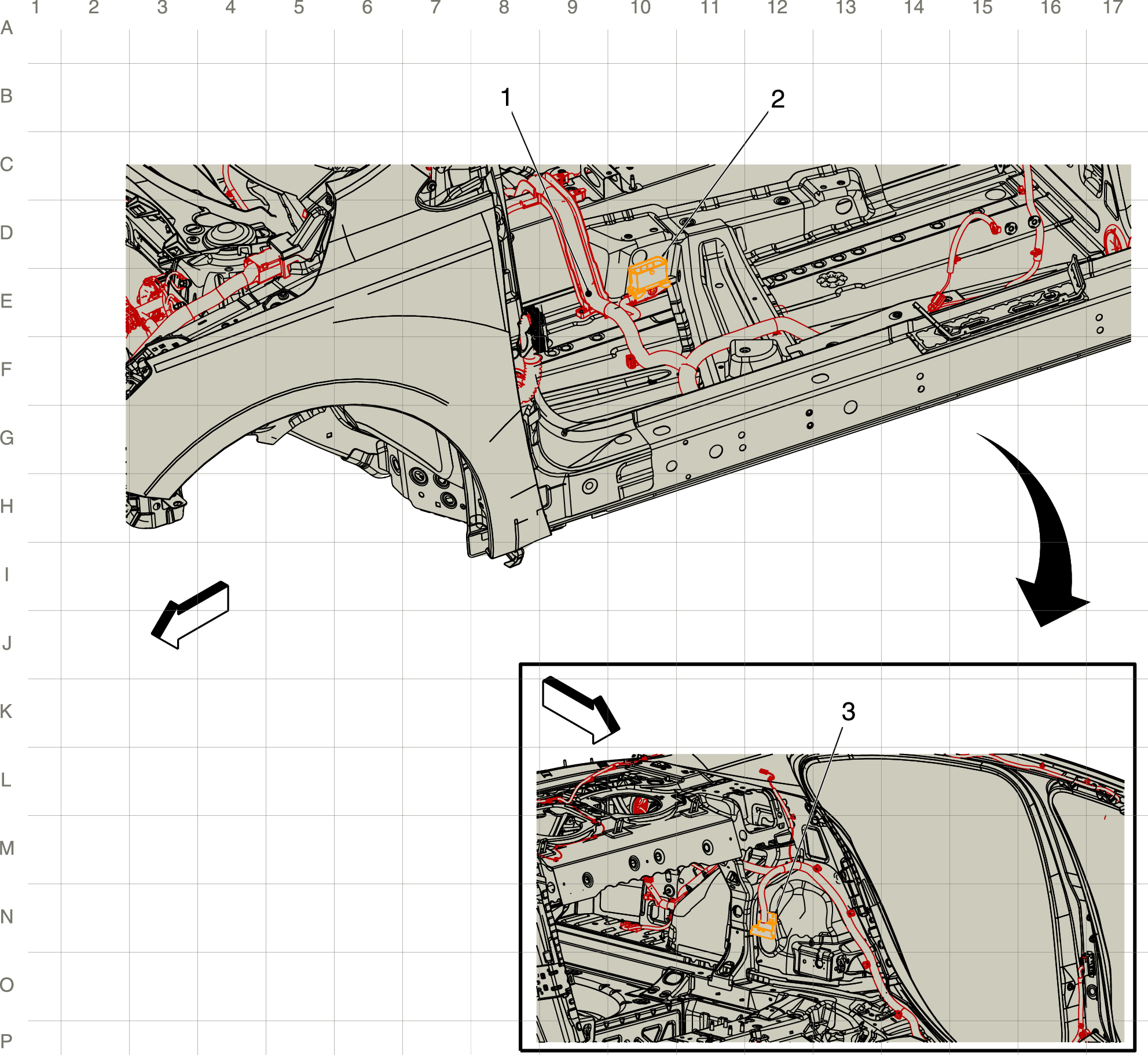

Passenger Compartment Harness Routing-Driver Side Rear

GM3767990Courtesy of GENERAL MOTORS COMPANY
Items
1. J326 Body Harness
2. X310 Driver Seat Harness to Body Harness X310 Driver Seat Harness to Body Harness
3. X403 Body Harness to Body Extension Harness X403 Body Harness to Body Extension Harness
