Instrument Panel Harness Routing

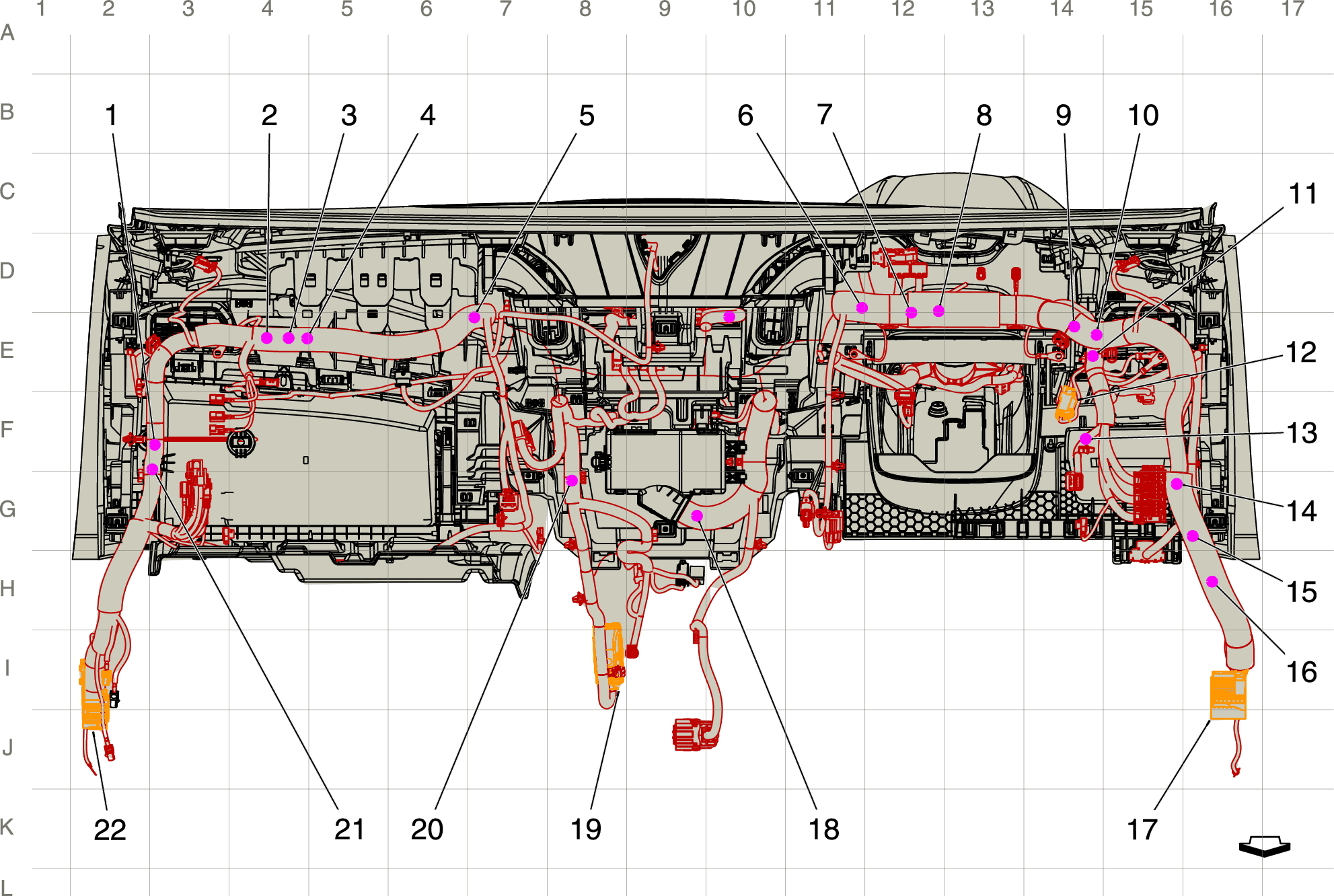

GM4282471Courtesy of GENERAL MOTORS COMPANY
Items
1. J216 Instrument Panel Harness
2. J218 Instrument Panel Harness
3. J210 Instrument Panel Harness
4. J217 Instrument Panel Harness
5. J213 Instrument Panel Harness
6. J208 Instrument Panel Harness
7. J209 Instrument Panel Harness
8. J211 Instrument Panel Harness
9. J213 Instrument Panel Harness
10. J214 Instrument Panel Harness
11. J200 Instrument Panel Harness
12. X235 Instrument Panel Harness to Instrument Panel Harness X235 Instrument Panel Harness to Instrument Panel Harness
13. J202 Instrument Panel Harness
14. J226 Instrument Panel Harness
15. J227 Instrument Panel Harness
16. J224 Instrument Panel Harness
17. X200 Instrument Panel Harness to Body Harness (102 cavities) X200 Instrument Panel Harness to Body Harness
18. J216 Instrument Panel Harness
19. X300 Instrument Panel Harness to Floor Console Harness X300 Instrument Panel Harness to Floor Console Harness
20. J212 Instrument Panel Harness
21. J215 Instrument Panel Harness
22. X201 Instrument Panel Harness to Body Harness (56 cavities) X201 Instrument Panel Harness to Body Harness
