X201 Instrument Panel Harness to Body Harness

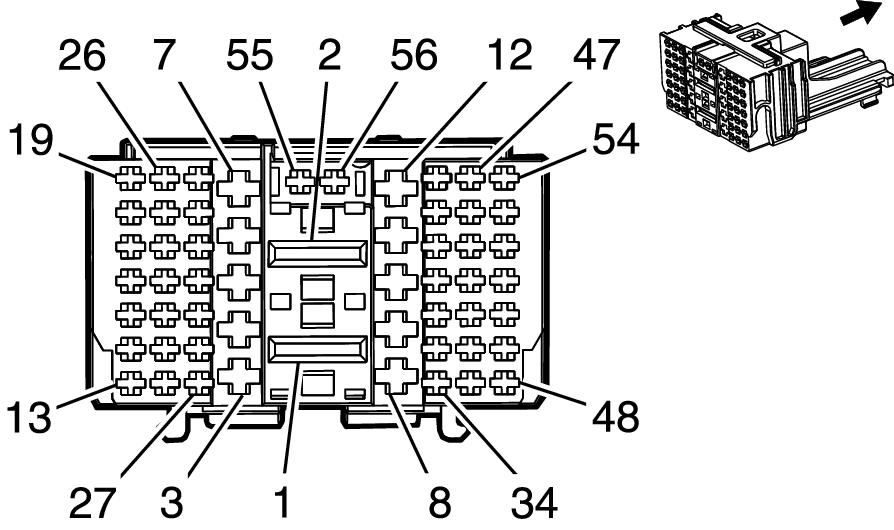

GM2282936

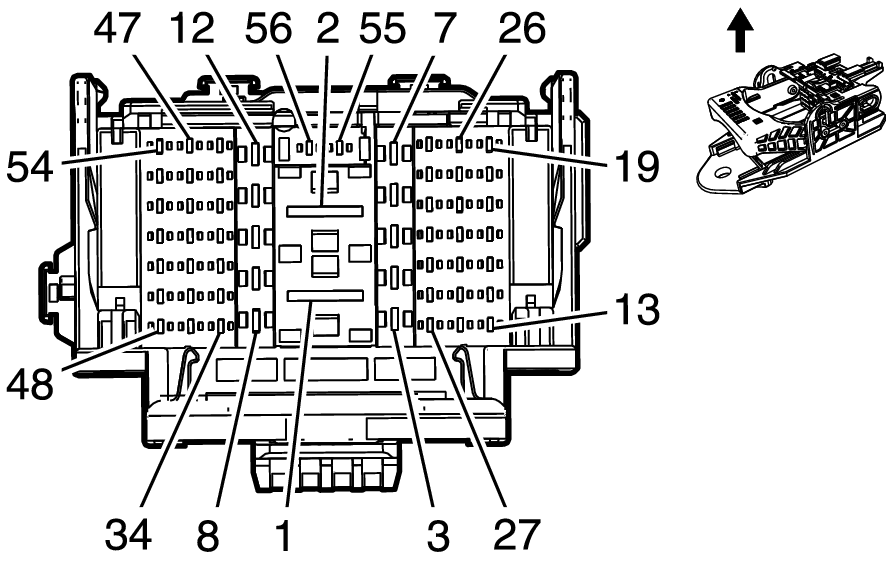

GM2282938
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13697719
  • Service Connector: 13505901
  • Description: 56-Way F 1.6, 2.8, 9.5 Timer Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13845874
  • Service Connector: 19299783
  • Description: 56-Way M 1.6, 2.8, 9.5 Timer Series
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575537 J-35616-14 (GN) J-38125-215A Not Available Not Available Not Available Not Available
II 13575538 J-35616-14 (GN) J-38125-215A Not Available Not Available Not Available Not Available
III 13575760 J-35616-14 (GN) J-38125-560 964274-2 Lear 16 E 1
IV 13575780 J-35616-35 (VT) J-38125-215A Not Available Not Available Not Available Not Available
V 13575781 J-35616-35 (VT) J-38125-215A Not Available Not Available Not Available Not Available
VI 19368223 J-35616-22 (RD) J-38125-221 Not Available Not Available Not Available Not Available
VII 13575574 J-35616-5 (PU) J-38125-215A Not Available Not Available Not Available Not Available
VIII 13575593 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E 2
IX 13575739 J-35616-21 (RD) J-38125-221 Not Available Not Available Not Available Not Available
X 13575775 J-35616-34 (YE) J-38125-215A Not Available Not Available Not Available Not Available
XI 13579919 J-35616-34 (YE) J-38125-560 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 4 RD/YE 2172 VI - 12V Regulated Supply Voltage 1 1 4 RD/YE 2172 IX -
2 - 7 - - - - - Not Occupied 2 - 7 - - - - -
8 1 RD/WH 5440 IV - Battery Positive Voltage 8 0.75 RD/WH 5440 VII -
9 2.5 RD/BN 1140 V - Battery Positive Voltage 9 2.5 RD/BN 1140 VII -
10 - 20 - - - - - Not Occupied 10 - 20 - - - - -
21 0.75 YE/BU 1856 III - Left Front Tweeter Speaker Control (+) 21 1.5 BU 201 XI -
22 0.75 YE/GY 1956 III - Left Front Tweeter Speaker (-) Low Reference 22 1.5 BN/BU 118 XI -
23 1 YE/WH 1860 III - Front Center Speaker Control (+) 23 1.5 YE/WH 1860 XI -
24 1 BU/YE 1960 III - Front Center Speaker (-) Low Reference 24 1.5 BU/YE 1960 XI -
25 0.75 BN/GN 1852 III - Right Front Tweeter Speaker Control (+) 25 1.5 YE 200 XI -
26 0.75 VT/BN 1952 III - Right Front Tweeter Speaker (-) Low Reference 26 1.5 YE/BK 117 XI -
27 - - - - - Not Occupied 27 - - - - -
28 0.13 GN/GY 2555 I - Rear Park Assist Disable Signal 28 0.35 GN/GY 2555 X -
29 0.13 GN/BN 5852 I - Rear Park Assist LED Disable Signal 29 0.35 GN/BN 5852 X -
30 - - - - - Not Occupied 30 - - - - -
31 0.35 WH 3152 I - Lane Departure Warning Indicator Control 31 0.35 WH 3152 X -
32 0.35 GY/WH 3153 I - Lane Departure Warning Disable Switch Signal 32 0.35 GY/WH 3153 X -
33 - 34 - - - - - Not Occupied 33 - 34 - - - - -
35 0.5 RD/GN 5140 II - Battery Positive Voltage 35 0.5 RD/GN 5140 VIII -
36 0.13 BN/WH 1637 I - Left Rear Heated Seat Switch Signal 36 0.35 BN/WH 1637 X -
37 0.13 WH/OG 1638 I - Left Rear Heated Seat High Indicator Control 37 0.35 WH/OG 1638 X -
38 0.13 BN/YE 1634 I - Right Rear Heated Seat Switch Signal 38 0.35 BN/YE 1634 X -
39 0.13 BN/WH 1635 I - Right Rear Heated Seat High Indicator Control 39 0.35 BN/WH 1635 X -
40 - 41 - - - - - Not Occupied 40 - 41 - - - - -
42 0.35 GY/GN 1102 I - Low Speed GMLAN Serial Data #2 42 0.35 GY/GN 1102 X -
43 - 56 - - - - - Not Occupied 43 - 56 - - - - -
